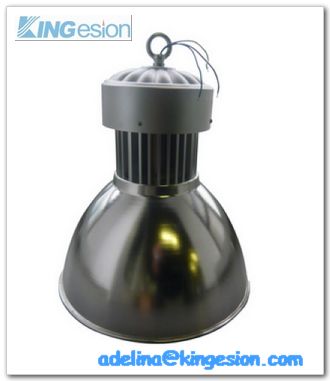

LED High Bay - (50w), Lighting Color : White

LED Heat Sinks with Low Temperature Solder Able (LTS) Copper Coating
HAIHONG® Low Temperature Solder able (LTS) copper coating has successfully made it possible for the high power LED package to directly be soldered onto heat sinks made from aluminum. HAIHONG® Low Temperature Solder able (LTS) copper coating technique is the ideal method to solve the degradation of heat conduction performance of thermal interface material (TIM) between integrated chip LED package and heat sink. The usage of integrated chip LED package is beneficial to design LED lighting at its best optical performance.
Competitive Advantages:
1. A thin copper coating is strongly bonded to the soldering required area on the surface of aluminum heat sinks.
2. The contact thermal resistance is eliminated through the soldering of high power LED package directly onto aluminum heat sinks.
3. The heat conductivity of lead-free soldering material (~50W/m.K) is 10 times higher than that (~5W/m.K) of the best thermal interface material (TIM).
4. The alloying combination of dissimilar materials between copper and aluminum prevents rebinding from thermal stress and chemical corrosion.
5. The enhanced heat transfer from direct soldering can significantly reduce required heat dissipation area of aluminum heat sinks at desired LED operation temperature.
Technical details:
Input Voltage:AC85V~265V
Frequency Range :50Hz~60Hz
Total Harmonic Distortion: ≤ 9 %
Power Factor: >0.95
Power Efficiency: >85 %
Working Voltage: DC30~36V
Led Qty : 1 pc
Led Consumption :50W
Total Consumption:55W
Led Luminous Efficiency: 100LM/W
Led Initial Flux:4800-5200 Lm
lamp's Efficiency:>80 %
I luminance Uniformity: >0.5
Color Temperature: 2700K~6500K
Color Rendering Index: Ra>70
Light Distribution :symmetrical distribution or Round light spot
Light Design: LED+ diffuser twice grading
LED Chip working Temperature(℃):50℃
Working Temperature: -30℃ ~ +55℃
IP Grade: IP65
Working Life-span:30000H
Power line:0.75mm2
NW:4kg
GW:5.5 kg
The color of the lamp shell:Black or white
Application :
1) Art gallery and museum, Industrial and commercial lighting.
2) Workshop and factory building lighting. Shipyard and mine lighting. Exhibition hall lighting .Storehouse lighting .Supermarket lighting. Gas station and toll station lighting .Stadium and other Architectural lighting etc.
