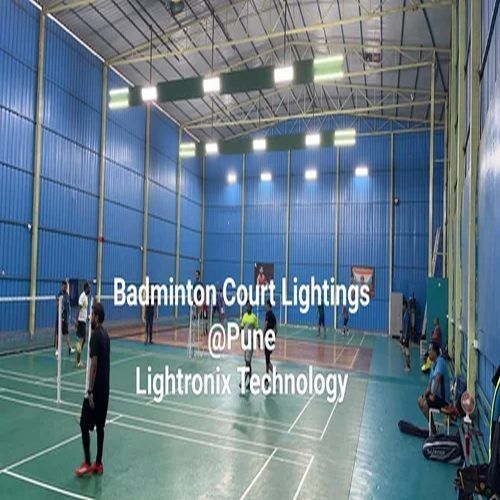

LED Linear High Bay Badminton Court Light

₹ 5,120 / Piece

MOQ10 Piece
Brand NameLightronix
Input Voltage85 – 300 VAC(Auto cut off above 310V)(Protection up to 440 V),85 – 300 VAC(Auto Cut Off Above 310V)(Protection Up To 440 V)
Country of OriginIndia
Beam Angle120 Degree
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Sector 26, Gandhinagar, Gujarat

View Number

Ask for more detail from the seller

Report incorrect details

Country of OriginIndia
Beam Angle120 Degree
Availability8.20Kg (±5%)
Brand NameLightronix
Luminous Flux140Lm/W
Led MakeBridgelux
Dimensions1215mm X 310mm X 55mm (±5%)
Input Voltage85 – 300 VAC(Auto cut off above 310V)(Protection up to 440 V),85 – 300 VAC(Auto Cut Off Above 310V)(Protection Up To 440 V)
Number of LEDs750 Led of 0.2W
LED Working Voltage+3.2 VDC
Surge Protection4KV/6KV (10KV Extra as per requirement)

\\\\\\\\\\\\\\\\\\\\\\\\\\\

\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\

\ OPTICAL PARAMETERS \
\ Led Beam Angle \	\ 120 Degree \
\ CRI (Color Rendering Index) \	\ >80 \
\ LED Life Span \	\ >60000 Hours \
\ Color \	\ White/Warm White/Cool White (As Per Order) \
\ Color Temperature \	\ 2700-6500K(As Per Order) \
\ Led Voltage/Current \	\ 3.2V/60mA \
\ LED Make \	\ Bridge lux \
\ Optical Lens \	\ NA \
\ Luminous Efficiency \	\ 140 Lm/W \
\ Total Lumens \	\ 21000(±5%) \
\ Optical Efficiency \	\ >93% \
\ Thermal Efficiency \	\ >90% \

\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\

\ ELECTRICAL PARAMETERS \
\ Wide Input Voltage Range \	\ 90-310VAC(With Auto Cutoff) \
\ Operating Frequency \	\ 50/60HZ \
\ Power Consumption \	\ 150 Watt \
\ Power Factor \	\ >0.95 \
\ THD \	\ <10% \
\ Driver Surge Protection \	\ 4-6KV \
\ External Surge Protection \	\ 10KV (As per Requirement) \
\ Control Gear \	\ Constant current LED Driver \
\ Operating Temperature \	\ -40 to 75°C \
\ Max. Case Temperature \	\ +90°C \
\ Working Humidity \	\ 20~95% RH non-condensing \
\ Driver thermal Protection \	\ Yes \
\ Electrical Efficiency \	\ >90% \
\ Supply Phase \	\ Single Phase Supply \
\ Over voltage Protection \	\ 440VAC Protection \
\ Under voltage Protection \	\ 90VAC \
\ Auto cutoff Voltage \	\ Lower Side<90VAC & Higher Side>310VAC \

\\\\\\\\\\\\\\\\\\\\\\\\\\\

\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\

\ MECHANICAL PARAMETERS \
\ Housing Material \	\ Metal body (20 gauge Thickness) \
\ Housing Color Type \	\ Anti-dust Off grey powder coating \
\ Housing Shape \	\ Rectangle \
\ Total Luminaries Weight \	\ 8.660 Kg \
\ Luminaries Size \	\ 1219 X 310 X 30mm³(±5%) \
\ Diffuser Glass Size \	\ 1215 X 295mm \
\ Mounting Device \	\ Clamp \
\ Mounting Style \	\ Wall mounting/ceiling/Hanging \
\ Glass Type \	\ Anti-glare diffuser glass (2 mm thickness) \
\ Cable Entry Option \	\ PG7 Cable Gland with Rubber Washer \
\ Screw Type \	\ Stainless Steel Screw \
\ IP Rating \	\ IP54 – Dust proof (Protection against Dust & Water Splashes) \
\ Impact Rating \	\ IK08/IK10 \
\ Marking Type \	\ Laser Marking/Engraving \
