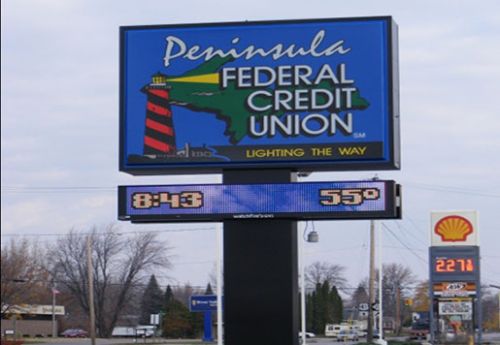

led message sign
programmable led sign
wifi programmable led message board
specifications
1. High brightness 12000nitsÂ
2. Outdoor waterproof ip68Â
3. Ce rohs etl sgs saa fcc ulÂ
4. Low power consumptionÂ
5. Ac110-240vÂ
technical parameter | ||
unit board | pixel pitch | 10mm |
module size | 160mm*160mm ( 320mm*160mm, 320mm*320mm) | |
resolution of module | 16*16dots | |
density of pixel | 10000dots/m2 | |
pixel configuration | led346 1r1g1b | |
main technical parameter | red wavelength | 620-630nm;Â 750-900mcd |
green wavelength | 525-530nm;1900-2100mcd | |
blue wavelength | 465-470nm;350-450mcd | |
colors | 16777216 | |
best viewing distance | 8-160m | |
horizontal/vertical viewing angle | 120 degree/60 degree | |
gray scale | 16bits per color | |
color temperature | 6500k | |
brightness | more than 6500cd/sqm | |
ip grade | front :ip67 back: ip65 | |
frame frequency | 60hz | |
refresh frequency | ≥2000hz | |
control method | synchronization/asynchronization | |
drive method | 1/4 scan | |
temperature | storage:-30°c-+85°c | |
 | working:-20°c-+65°c | |
operating ambient humidity | 10%—95%rh | |
earth leakage current | < 2ma | |
defects rate. | ≤0.00001(led display line standard | |
