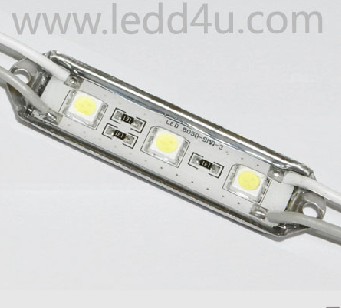

LED Module-DM-f1248w3smd-5

We are offering led module-dm-f1248w3smd-5.
led type
5050 smd
angle
≥140°
available
red/green/blue/yellow/white/warm white
color temperature/
wavelength
red green blue yellow white warm white
619-635 512-528 463-475 484-595 5500-11000 2400-4000
single-light flux( lm)
red green blue yellow white warm white
3.5 6 3.5 3.5 12 10
led qty(pcs)
3
light source life
50000 hours
voltage
dc12v
power
0.72w
drive mode
constant drive
shell
metal clad
shell size
16*61*4mm
shell color
sliver
temperature
-40℃～60℃
storage temperature
-50℃～80℃
ip rank
ip65
product description :
1、the thickness and thinness of the power cord should be determined due to the actual maximum curret,the product power,limited length(not recommended for more than 5 meters),and low-voltage transmission line loss.
2、the out-stretch line of both sides of the light should take note of waterproof.
3、static touch is strictly prohibited,operation with power.
4、the lamp line is up to be available for max 20pcs connection,non-super-tandem.
5、the proposed use of qualified switching power supply(with short-cicuit protection,overvoltage protection,overload protection)is strongly recommended.
6、please connect following the notified positive and negative of the outer covering,the grey line for the positive power and white,for the negative power.
applications:
•channel letters backlighting
•advertisement signs backlighting
•advertisement light boxes backlighting
