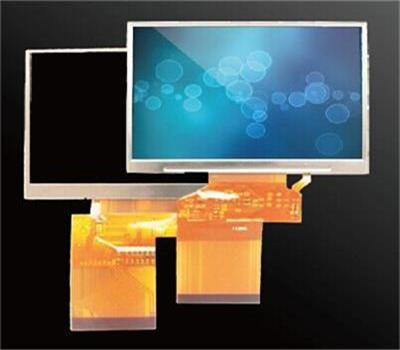

3.5" tft lcd panel
- model no.:sat035nc111
- system: palntsc automatic
​
1. Introduction
(1). Summary
this technical specification applies to 3.5[color tft-lcd panel. The 3.45[ color tft-lcd
panel is designed for gps, camcorder, digital camera application and other electronic products
which require high quality flat panel displays.
This module follows rohs.
(2). Features
high resolution: 230,400 dots (320 rgb x 240). Lq035nc111 is a transmissive type color active matrix liquid crystal display (lcd) which uses amorphous thin film transistor (tft) as switching devices. This product is composed of a tft lcd panel, driver ics, fpc and a
backlight unit.
2. Main parameters
resolution:320 rgb x 240dot matrix
valid display area:70.08(h) x 52.56(v)(mm)
color style:r.g.b. Beeline array
aspect ratio:4:3
backlight source:led backlight
working voltage:dc9v~dc18v(standard:dc12v)
pixel configuration:rgb-stripe
signal system:palntsc
scope of input signal:standard:1.0 vp-p,minimum:0.5 vp-p ,maximum:2.0 vp-p
view angle direction:6 o`clock
display garmut:ntsc 60%
working temperature scope:-20℃-70℃
storage temperature scope:-30℃-80℃
3. Packing
sample packing dimension:180×120×30mm
module writing:sat-86-sf-10p-125 sat-85-sf-2p-200
(sat-86-sf-9p10p-125)each 1pcs
large box of packing specifications:447(l)*382(w)*292(h)mm
carton quantity:no bracket 60pcs, each separated by paper card board.
