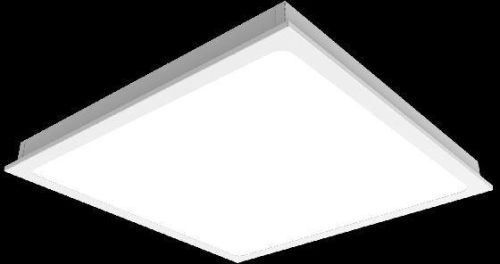

Led panel light, Brand Name : Ballastco

Advantages
• up to %60 saving
• 60000 hours life time
• no reflectivity, more efficiency
• do not contain harmful gas
• enviromentally, do not contain ir uv.
Applications
• hospitals
• schools
• supermarkets
• business centers
• laboratories
• offices
• showrooms
technical details
input voltage : 220-240 vac, 5060 hz
efficiency : %90-95
housing : 0,5 mm dkp
diffuser : opal pmma-ps
installation : drywall aluminium celing rock wool
operating temperature : -0 c , +40 c
op. Temp. With emergency kit : +5 c , +35 c
impact resistance : ik 02
led life time : 60000 hours @ ta=40 c
optional features
ceiling types : clip-in, lay-in, surface mounted, acoustic
correlated color temperatures : 3000k , 4000k, 6500k
ip class : ip 20, ip 40, ip 65
emergency kit options : 1 or 3 hours
dali options : yes no
mount options : recessed surface mounted
product list
product code wattage light flux light color power factor dimensions weight cri pack quantity
blp303015 14,5 w 1305 300040006500 k >0,90 295x295x50 mm 1,375 kg >80 10
blp303020 20 w 1870 300040006500 k >0,90 295x295x50 mm 1,375 kg >80 10
blp306020 20 w 1895 300040006500 k >0,90 295x595x58 mm 1,85 kg >80 5
blp306030 30 w 2265 300040006500 k >0,90 295x595x58 mm 2,4 kg >80 5
blp606020 20 w 2496 300040006500 k >0,95 595x595x58 mm 3,2 kg >80 5
blp606030 30 w 3435 300040006500 k >0,95 595x595x58 mm 3,45 kg >80 5
blp606040 40 w 4000 300040006500 k >0,95 595x595x58 mm 3,47 kg >80 5
blp3012030 32 w 3400 300040006500 k >0,95 1195x295x58 mm 4,6 kg >80 5
blp3012040 42 w 4250 300040006500 k >0,95 1195x295x58 mm 4,75 kg >80 5
blp6012040 40 w 4000 300040006500 k >0,95 1195x595x58 mm 7,15 kg >80 4
blp6012070 67 w 6864 300040006500 k >0,95 1195x595x58 mm 7,5 kg >80 4
