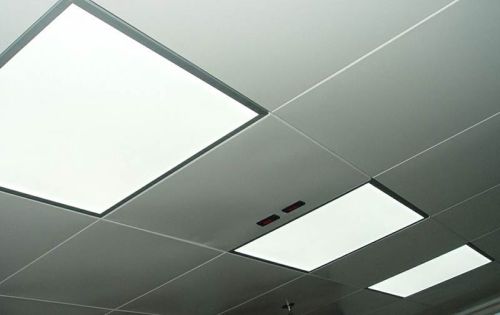

LED Panel Lights

Supply TypeManufacturer
Preferred Buyer Location All over the world

We are offering a wide variety of LED Panel Lights ranging from 3W to 18W. Our LED Panel Lights are available in different designs and specifications to meet the requirements of the clients. Moreover, these eco-friendly LED Panel Lights are appreciated for features like bright illumination, maximum lumens per watt (lm/W), minimal power consumption, easy installation and slim & sturdy design.

View More Details

Send Enquiry

Product Details

Technical Details

Model No.	3W Panel	6W Panel	12W Panel	15W Panel	18W Panel
Dimensions	For Round :- Size : Φ92X20 mm Cutting Hole : Φ70 -86 mm For Square :- Size : 90X90X20 mm Cutting Hole : 72X72 -84X84 mm	For Round :-Size : Φ121X20 mm Cutting Hole : Φ109 -115 mm For Square :- Size : 120X120X20 mm Cutting Hole : 105X105 -114X114 mm	For Round :- Size : Φ170X20 mm Cutting Hole : Φ158 -164 mm For Square :- Size : 172X172X20 mm Cutting Hole : 155X155 -166X166 mm	For Round :- Size : Φ192X20 mm Cutting Hole : Φ175 -186 mm For Square :- Size : 193X193X20 mm Cutting Hole : 175X175 -187X187 mm	For Round :- Size : Φ224X20 mm Cutting Hole : Φ206 -218 mm For Square :- Size : 224X224X20 mm Cutting Hole : 205X205 -218X218 mm
Input Voltage	90 - 270V AC	90 - 270V AC	90 - 270V AC	90 - 270V AC	90 - 270V AC
Power Consumption	3W+/- 0.25W	6W +/- 0.25W	12W +/- 0.5W	15W +/- 1W	18W +/- 1W
Color Temp.	2700 - 3500K, 4200 - 4500K, 5500 - 6500K	2700 - 3500K, 4200 - 4500K, 5500 - 6500K	2700 - 3500K, 4200 - 4500K, 5500 - 6500K	2700 - 3500K, 4200 - 4500K, 5500 - 6500K	2700 - 3500K, 4200 - 4500K, 5500 - 6500K
Luminous Flux	85-90 lm/Watt	85-90 lm/Watt	85-90 lm/Watt	85-90 lm/Watt	85-90 lm/Watt
Beam Angle	180 Degrees	180 Degrees	180 Degrees	180 Degrees	180 Degrees
IP	50	50	50	50	50
Material	Aluminium + Acrylic	Aluminium + Acrylic	Aluminium + Acrylic	Aluminium + Acrylic	Aluminium + Acrylic

Specifications

Model No.	300X300 mm Panel	300X600 mm Panel	600X600 mm Panel
Wattage Available	8W / 12W	16W / 24W	36W / 40W
Input Voltage	90 - 270V AC	90 - 270V AC	90 - 270V AC
Color Temp.	2700 - 3500K, 4200 - 4500K, 5500 - 6500K	2700 - 3500K, 4200 - 4500K, 5500 - 6500K	2700 - 3500K, 4200 - 4500K, 5500 - 6500K
Luminous Flux	85-90 lm/Watt	85-90 lm/Watt	85-90 lm/Watt
Beam Angle	180 Degrees	180 Degrees	180 Degrees
IP	50	50	50
Material	Aluminium + Acrylic	Aluminium + Acrylic	Aluminium + Acrylic
