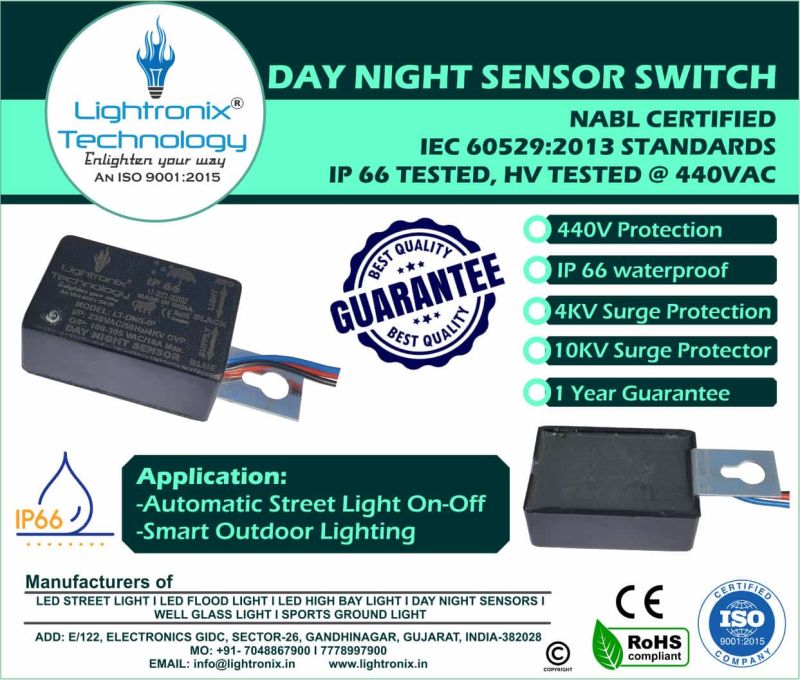

Model | LT-DNS-IP (IP66 DAY NIGHT SENSOR) | |
Certification | IEC 60529:2013 IP66 TEST (NABL CERTIFIED) | |
Dimension |
| |
Weight | 90 gm (IP) (±10gm Tolerance) | |
Input Voltage | 100-305 VAC (440 Volt Protection) (HV TESTED @ 440VAC) | |
Operating Frequency | 50 Hz | |
External Load capacity | Up to 300 Watt | |
Output Voltage/Current | 240VAC / 10 A / 16A / 20A (±10% Tolerance) | |
Off load power consumption | 0.54 W | |
Surge protection | 4 KV Protection | |
Ambient Light | 6 lux to 40 lux (± 5% tolerance) lux level for switching on from 6 to 14 LUX lux level for switching off from 20 to 35 LUX | |
Availability | With IP66 Potted | |
Potting Material | Hybrid polymer (Thermal conductivity – 0.7) | |
Warranty | 1 Year ( Warranty will not cover if sensor is in burn condition) | |
Additional Features | -With best quality and Original components for automatic circuit. | |
Application | -Street light, Security lights, Garden lights, | |
Function | Automatic switch ON light in NIGHT. | |
Terminology | AC Input – BLUE & BLACK Wires Output – RED & BLACK Wires (Connect with Light or Load) (0.5 square mm copper cable – 200mm length) |
| Operating Voltage | 240V |
|---|---|
| Switching Delay | Instant Switching |
| Rated Load Current | 10 A |
| Brand | LIGHTRONIX TECHNOLOGY |
| Power Frequency | 50 Hz |
| Ambient Light | 6 lux to 40 lux (+- 5% tolerance) |
| Working Temperature | -20 to +50 DegC |
| IP Rating | IP66 |
| Number of wires | 3 |
| Dimension | 60X38X25 mm3 (2mm Tolerance) |
| Weight | 90 gm (IP) (10gm Tolerance) |
| Input Voltage | 100-305 VAC |
| Operating Frequency | 50 Hz |
| External Load capacity | Up to 300 Watt |
| Output Voltage/Current | 240VAC / 10 A |
| Off load power consumption | 0.54 W |
| Surge protection | 4 KV Protection |
| Ambient Light | 6 lux to 40 lux ( 5% tolerance) lux level for switching on from 6 to 14 LUX lux level for switching off from 20 to 35 LUX |
| Availability | With enclosure, With IP66 Coating With Open Circuit |
| Potting Material | Hybrid polymer (Thermal conductivity 0.7) |
| Warranty | 1 Year ( Warranty will not cover if sensor is in burn condition) |
| Additional Features | -With best quality and Original components for automatic circuit. -Single shot ON-OFF operation. -No flickering at load side. -Heavy duty and long life circuit. Fit and Forget module. |
| Application | -Street light, Security lights, Garden lights, -Industrial lights, Outdoor lights |
| Function | Automatic switch ON light in NIGHT. Automatic switch OFF light in MORNING. |
| Terminology | AC Input Yellow Wires Output Red & Black Wires (0.5 square mm copper cable 200mm length) |
