LED Strip Light

We are offering led strip light,.

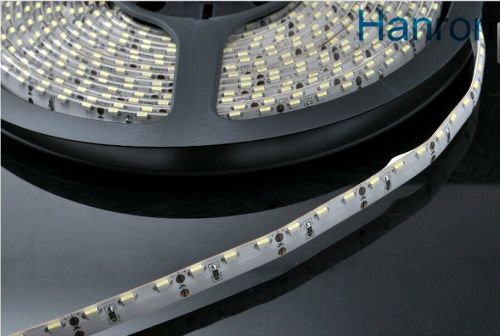

Smd335 led strip light 60ledm
hanron lighting co. Limited’s smd335 led flexible strip lighting, 60ledmeter, waterproof &non-waterproof, 4.8wm, 6-7lmled, 30,000hrs lifetime.
features:
1. side view smd335 chip, high brightness, wide beam angle, low decay.
2. easy to install for any bending
3. low power consumption, long life span, free maintenance
4. working temperature: -40℃ - 50℃
5. storage temperature:-50℃ - 60℃
6. certification: ce & rohs
application:
1. cove lighting
2. architectural lights for canopy, corridor, window, archway
3. backlight or edge lighting for signage
4. diy lights for home use
5. path and contour marking
6. decorative lights for holiday, event, show, exhibition
7. special light effect for art gallery and glass-made items
parameter
item no.: hr00-ahnw6012a
led type: smd335
led qty: 60
voltage: dc12v&dc24v
power: 4.8w9.6w
color: wcwwwrgby
beam angle: 120deg
luminous flux: 6-7lmled
protect level: ip20ip65ip67ip68
color of fpc: whiteblackyellow
notes:
1. connect red cable to positive, black cable to negative; equip safe protector to cable outlet, confirm input voltage of is 12v before power supply concatenation, working voltage is 12v, wrong voltage concatenation will cause permanent damage.
2. max length for concatenation is 5m for one circuit. Make another circuit if length is over 5m. Same cable length for every circuit.
3. ensure cable outlet of strip to be waterproof
4. prohibit touching and operating with static.
5. please use qualified smps with short circuit protection、overload protection and s.o.p. Certificate.
6. diameter of electrical cable depends on actual max output current、product power、cabling length (less 5m)and low voltage transmission cable.
