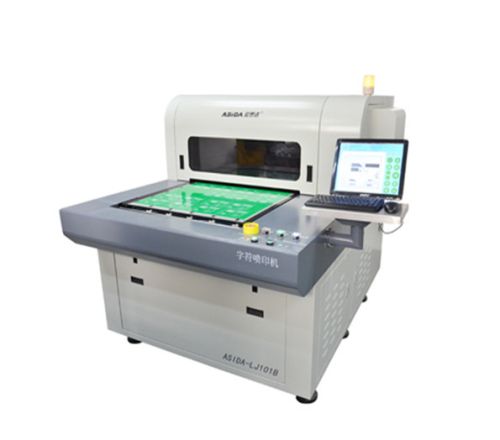

Legend Inkjet Printer LJ101B

Legend Inkjet Printer LJ101B PCB Maufacturing Machines Usage The equipment is used in processing of character printing on PCB, which replaced of the traditional screen printing to provide a high-precision, high-quality and efficient characters production solutions for PCB manufacturers. Features 1, High precision: Adopt special precision linear motion guide modules, servo control, multi- points positioning and compensation technology; 2, High-quality: high definition printing characters; strong adhesion; 3, High efficiency: Using high-performance LED-UV ink curing systems, the curing time is short; bi-directional print technology allows a substantial increase in production efficiency; linear motor technology ensures accurate bidirectional printing, making it a practical solution. 4, User-friendly: the double printing platform options for different print media,and is well prepared for the coming new ink printing  technology. Parameters Specification of Legend Inkjet Printer Model LJ101B Accuracy Positioning Accuracy: ±35μm Repeat Accuracy: ±5μm Quality Resolution: 720dpi x720dpi ～1440dpi x1440dpi Minimum Line Width: 75μm ~ 90μm Minimum Character Height: 0.5mm              Speed If PCB’s size 350mm x  450mm : (a)Two-way quickly mode:120 side per hour (b)Two-way production mode: 78 side per hour (c)Two-way high-definition mode: 47 side per hour   Objects Circuit board size: 610mm x 600mm（24"×23"） Circuit board thickness: 0～6mm（20～236 mil） Dimensions (L×W×H) 1680mm x 1940mm x1460mm（not including computer） Weight 1350Kg
