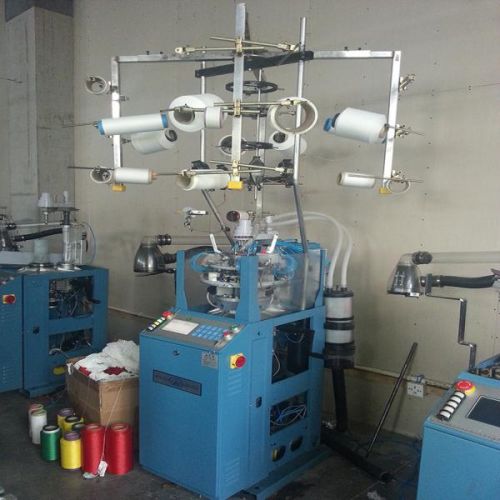

Leggings Circular Knitting Machine

Main Features and Function

1. Waist  belt : The waist belt rise or fall control by pneumatic, have 2 work positions, knitted the waist belt at high position and knitted the fabric at low position
2. Clippers device: The Clippers rise and fall control by pneumatic, if yarn not cut off hall alarm automatically, also can blow the air to clean the slit up yarn and reduce the machine breakdown.
3. Stitch density :  The stitch cam have enter and exit work position function, can knit multiple feeders pattern, also have work status test function and machine in abnormally status auto-stop and alarm. Adopt cam and air cylinder to achieve the stitch adjust without interval.  Machine equip the high speed stepping motor will achieve the 3D function.
4. Actuator: Adopt 16 levels electric ceramic actuator. Structure easily reliable low energy consumed and low generator heat.
5. Cylinder up/down: The cylinder rise and fall control by stepping motor, which can substantially adjust the stitch density. The cylinder height position shall decide the stitch density basis value.
6. Lubricate : Lubrication by mechanic control, which lubrication during making revolution, because the pantyhose machine is high speed running and must continuous lubrication when machine revolution, which control the temperature rises and reduce the machine abrade.
7. Air Compressor: To have functions of drainage, air pressure adjustment and alarm of lack air pressure.
8. Yarn feeder: 4 feeders, each feeder with 6-8 yarn fingers and each finger with 2 work positions. Change yarn finger pneumatic control, catch yarn finger with high and low work positions, the yarn finger can move to left or right and knit the jacquard pattern. Whole yarn device can bottom over, which easily for maintenance.
9. Drop hood: Control by 2 stepping motor though rough adjust the 2 sets cam position with stitch press cam to achieve the fabric stitch density adjustment, mainly used to achieve the take down width for knitted rib pattern. Another setting motor can adjust the position of dropt hood.
10. Dial jacks: Control by electric magnetism vale avoid pantyhose machine revolution by high speed and knitted waist belt pattern. Shall bring needle miss and make fabric defective.
11. Take down: The down device control by suction and structure simply, enable the knitting fabric pulling for even and without spoil the fiber of knitting fabric. The resist twist device prevent the twisting for wrinkle during knitted the fabric with hosiery tube bring the proportion rub and damage the fabric, which enhance the fabric surface quality.
