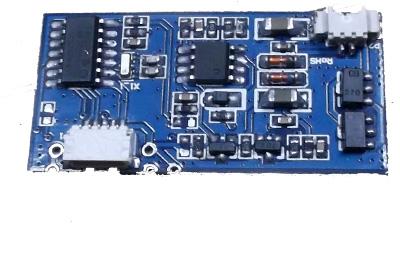

Lf 125khz Em4100/4200 Proximity RFID Reader Module

We are offering proximity rfid reader module. Key features:
compact size, easy embedding
external antenna with optional or customized size
read only uid of em41004200 or other compatible cards
low voltage, low consumption
different connection way available in the board
enable integration into android device direction
auto reading mode and transferring data
data output can be optional of rs232(ttl) or wiegand 26
technical parameters:
frequency 125mhz
baudrate 9600-115200bits(adjustable, default 9600)
card support read only em41004200， tk41004200
interface ttl， wiegand 26
connector 1.25mm pitch connector, stamp hole or 2.54mm pitch pin
power dc 3.3v（±5%）
current
reading range 50mm（depends on tag and antenna ）
working temp -10℃ ~ +70℃
storage temp -20℃ ~ +80℃
dimension 39mmx20mmx4.0mm
typical application:
access control
time attendance
gaming machines
industrial automatic
android device
smart gaming device
