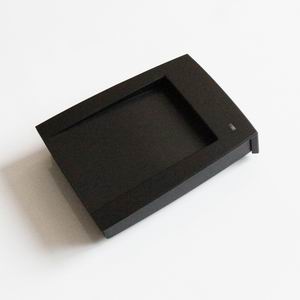

Lf Passive RFID Desktop Reader

We are offering em4100& ata5577 lf passive rfid desktop reader/writer.
view larger image
displaying 1/1
displaying 1/1
em4100& ata5577 lf passive rfid desktop reader/writer
item#: d-think_302u
retail price: us$55.00
wholesale price: us$€
¥
55.00
start from: 1 unit(s)
manufactured by: d-think technologies,inc.
weight: 0.35 kg(s)
qty.range(unit) price(per unit) discount
1-9 us$55.00 no
10-99 us$49.50 10%
100-499 us$46.75 15%
500-999 us$44.00 20%
1,000+ us$42.35 23%
description:
d-think 300 rfid reader is the most powerful series products in d- think lf family products operating with the low frequency 125khz~134.2khz.besides supporting general emid (tk4100, gk4100, em4100) cards reading, d-think 300 can read and write low frequency ic chips such as ata5567, ata5577, em4469, em4305, hitag-s through efficient decoding algorithm combined with powerful data processing function of microprocessor. In addition, it can implement the decoding and the making of the animal format tags in accordance with iso11784/85 protocols.
d-think 300 is a non-contact ic card reader, it's easy and convenient to operate and reading speed. Its maximum reading distance is up to 10cm.the user-friendly design of demo program allows beginners to understand card structure quickly. And user-controlled led backlight and buzzer reflects the secondary development of the rich features of d-think ®products.
d-think 300 series readers, in strictly accordance with iso11784/85protocols, designed for racing pigeons management, reading and writing electronic ear tag of animals such as pigs, cattle, sheep, rabbits and so on.
in order to make this product quickly be integrated into the applications, we offer a lot of sample applications of development tools for developers, which enables developers get down to the development quickly.
features
radio frequency identification (rfid)
• comply with iso 11784/85 protocol
• support tk4100, gk4100, em4100 and compatible chip
• support temic 5557, ata5567, ata5577
• support hitag-s
• support em4469, em4205, em4305
• support the secondary development
physical interface
• usb 2.0
• rs 232
rfid antenna
• built-in
frequency
• 125khz~134.2khz (lf )
operating system
• microsoft windows2000/xp/vista/win 7
• linux
read / write distance
• 3 ~ 10cm (depending on the antenna structure and the use of the environment)
power
• 5 ma (typical) standby
• 90 ma (typical) field scanning
• 5v (typical) operation
shape
• 123 * 88 * 25 (mm)
• about 100g
• three-color led
• built-in buzzer
development environment
• c + +, vc, java, c #, vb, vb.net, delphi, etc.
applications
• bars, ktv, restaurant
• hotel access, water/electric/gas power card issuers and recharge
• id card key backup
• animal management
model notes
d-think_301
d-think_302u
d-think_302t
d-think_302h
d-think_303u
d-think_303t
usb driver free
√
usb
√
√
√
√
√
rs232
√
√
√
√
√
em4100&compatible chip
√
√
√
√
√
√
em4305
√
√
√
ata5577
√
√
√
hitag- s
√
√
iso 11784/85
√
√
√
√
em4450
√
