Lf RFID Id Module

We are offering iso117845 lf rfid id module-m30z134.
View larger image
displaying 11
displaying 11

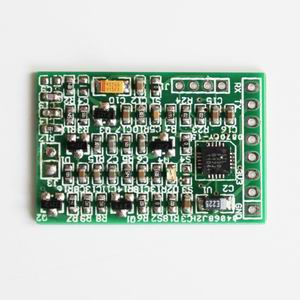

iso117845 lf rfid id module-m30z134
item#: d-think m30z134
retail price: us$14.50
wholesale price: us$€
¥
14.50
start from: 1 unit(s)
manufactured by: d-think technologies,inc.
weight: 0.03 kg(s)
qty.range(unit) price(per unit) discount
1-9 us$14.50 no
10-99 us$13.05 10%
100-499 us$12.33 15%
500-999 us$11.60 20%
1,000+ us$10.88 25%
description:
d-think m30z134 embedded module is independently developed by guangzhou d-think technologies inc. It is a id readwrite module with 134.2khz frequency which supports iso1178411785&compatibility protocol. This module is designed for pda or other handheld devices. It is simple to operate for completing read and write through simple uart commands.
d-think m30z134 module is small size, wide operating voltage and easily embedded into handheld devices.
technical parameters:
model
d-think_m30z134
operating frequency
134.2khz
protocol
iso 117845
support chip
chips comply with or configured to iso 117845 format
readwrite distance
3-15cm(depending on the antenna structure and used environment)
communication interface
ttl uart, easy to connect with scm or embedded system
operating voltage
2.7-3.6v
operating current
standby current:1.6ma;working current:70ma
operating temperature
-10°c-70°c
size
22*32mm
baud rate
9600-115200bps
application
animal management, low-power handheld devices
