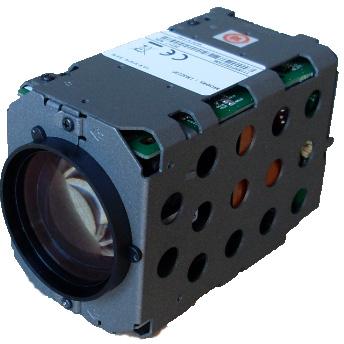

Lg Lm3223p Ir 650tvl 1/4 CCD Xdi-ii Icr Color Module Camera

We offer Lg Lm3223p Ir 650tvl 1/4 Ccd Xdi-ii Icr Color Module Camera.
MODEL: LM3223N LM3223P
VIDEO SYSTEM NTSC PAL
Total effective pixels 520K 480K 610K 570K
Imaging sensor 4.5mm (14 Type) CCD
ISP XDI-Ⅱ
Lens F1.5（The minimum optical zoom);F3.0 (Extra Optical Zoom ) f=3.5 ~ 80.5 mm
Optical ZOOM X23
Digital Zoom X12
Iris Control DC
Synchronization Method InOut
Scanning Frequency 15.734 KHz 59.94 Hz 15.625 KHz 50 Hz
Horizontal Resolution 650TVL
SN Ratio: 50dB
Minimum Illumination(30IRE) BW - Sens off : 0.05 lux, Sens up on : 0.0001 lux Color - Sens off : 0.6 lux, Sens up on : 0.003 lux
Video Output 1Vp-p Composite (75Ω)
Function Day & Night ICR (Auto Day Night)
BLC WDR BLC HLCOFF
3D DNR DNR (Off Low Middle High)
AGC 0 ~ 10 (1step level)
ES 160 ~ 1120,000 150 ~ 1120,000
Sens-up OFF Auto (X2, X3, X4, …X128)
White Balance Auto ATW (1,700 degree K ~ 11,000 degree K) Keying automatically Manual
Motion Detection Intelligent Regional motion detecting
Privacy shelter 8 area
EIS On Off
Digital visual effect OFF Flip Vertical The Mirror Spin
Multilingual menu English Chinese Hangul GetSmile Japanese
Interface Treaty LG-multixETM
Serial Interface RS-232TTL
Power Power DC 9V ~ 14V
Power loss 3.6W
Environment Operating temperature Humidity -10°C ~ 60°C 0%~80%RH (non-condensing )
Storage TemperatureHumidity -20 deg.C ~ 60deg.C 0% ~ 85%RH non-condensing )
Craft Size (H×V×D) 46.6*57.6*84.9 (A-type) 50*60*85.7 (B-type)
Weight 219.5g (A-type) 235.5g (B-type)
