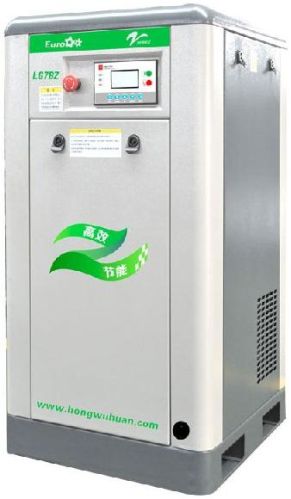

LG7BZ Condition Air Compressor

New condition lg7bz air compressor for textile integrates combination valve and matches large flow external oil/air separator,small pressure difference,high separation efficiency.new condition air compressors are convenient and easy to maintain. Air compressor for textile adopts high-performance oil filter to guarantee oil cleanliness and prolong the life of the internal components of air compressors. Lgbz series technical parameters                                                                                                          model parameters lg7bz lg11bz lg15bz air displacement m³/min 1.15 1.65 2.3 discharge pressure mpa 0.8 0.8 0.8 compressed stage   single single single motor model   y2-132s2-2 ly-132m1-2 ly-132m2-2 motor power kw 7.5 11 15 motor speed rpm 2950 2950 2950 power supply v/p/hz 380/3/50 start mode   direct start direct start y-∆ drive mode   belt drive belt drive belt drive air inlet size   g3/4'' g3/4'' g1'' cooling method   air cooling air cooling air cooling length mm 560 650 650 width mm 630 720 720 height mm 1075 1180 1180 net weight kg 200 300 350.
