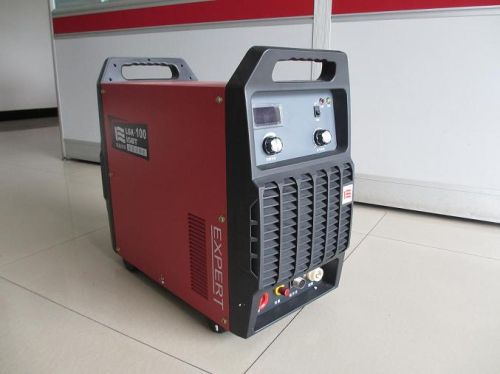

We are offering igbt plasma cutter.
model no:lgk7-100,lgk7-120,lgk7-160
voltage:3 phase 380v50hz
rated input capacity(kva):17.1,21,27
input current:26a,32a,41a
duty cycle(%);60
no-load voltage(v):300,320,330
working voltage(v):120,128,144
rated cutting current(a):100,120,160
cooling way:fan
cutting thickness(carbon steel): ≤30mm
air pressure: 0.35-0.5mpa, 0.4-0.6mpa, 0.4-0.6mpa
cooling way:fan
insulation class:f
protection class:ip21s
dimension: 650×320×560（mm）
weight:43,45,49
charicteristics:
1.the working gas is compressed air
2.used with stainless steel, carbon steel, alloy steel, aluminum, copper, nickel, titanium and other kinds of metal materials
3.with cutting speed, narrow incision, small deformation, material-saving, low production costs
4.can be widely used in shipbuilding, motor vehicles, automobile manufacturing, boilers, environmental protection, purification, kitchen utensils and other equipment to produce sheet metal cutting and assembly process.
