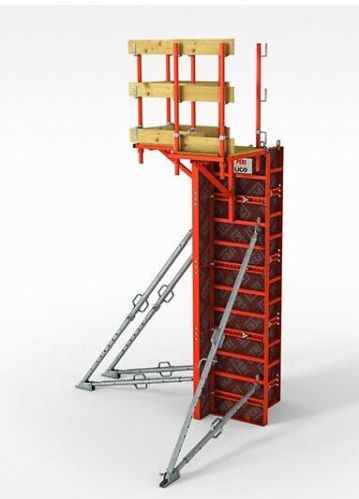

LICO Column Formwork

With its low individual panel weights and simple frame construction of the panels, LICO is ideal for assembling and dismantling by hand. This column formwork is the right choice if lower surface requirements are to be fulfilled and when the emphasis lies on economic efficiency.
Cost-effective column formwork
with simply constructed steel frames for working without the use of a crane
Easy and simple assembly
with only 3 panel heights and connecting means which are permanently attached to the panels and cannot be lost
Ring bolts on all panels
serve as load bearing points for moving with the crane as well as for panel connections when extendingFor square and rectangular cross-sections from 20 cm x 20 cm up to 60 cm x 60 cm in 5 cm increments
Larger cross-sections with additional ties
Height adjustments up to maximum 4.50 m in 50 cm increments with 3 different panel heights (0.50 m 1.00 m 3.00 m)
Panel connection when extending by means of ring bolts on the panels that also serve as crane suspension
Maximum permissible fresh concrete pressure 80 kNm²
With working and concreting platforms
