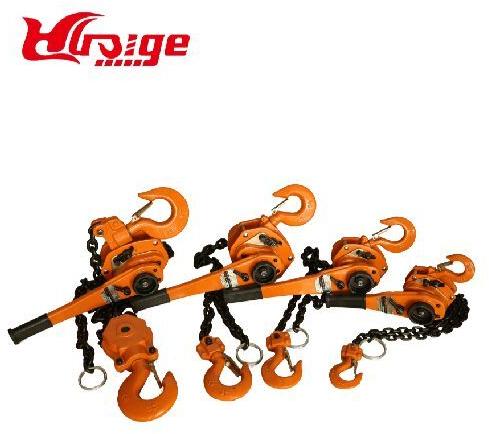

Lift Puller Chain Hoist

3 Ton LEVER BLOCK Ratchet Chain Hoist Lift Puller This all purpose, universal ratchet lever hoist comes complete with top and bottom hook. Standard height of lift is 1.5m but we can easily add provide you with more by selecting the desired extra height of lift. Standard Capacity we can make it from  0.75Ton~9 ton.  Model Capacity(T) Standard lift(M) Running test load(T) No. of falls of load chain Load chain Diameter(MM) Dimension(MM) Net weight(KG)   A B C VL 0.75T 0.75 1.5 1.125 1 6.3 155 88 135 6.6 VL 1.5T 1.5 1.5 2.25 1 7.1 170 110 162 11 VL 3T 3 1.5 4.5 1 9 198 120 211 17 VL 6T 6 1.5 9 2 9 198 120 254 27.5 VL 9T 9 1.5 13.5 3 9 198 120 319 4763 Ton LEVER BLOCK Ratchet Chain Hoist Lift Puller 1. The lever hoist with tight structure and graceful outline and its weight is light. People can operate it easily even in narrow place.2. The handle with human engineering design is easy to handle.3. The braking mechanism, which makes up heart of the hoist, is enclosed in a double cover: the wheel and the brake covers. These protective covers not only keep out weather elements but also help to prevent mud and dust from entering internal mechanisms.4. The top and bottom hook are made of forged high strength alloy, accomplished by heat treatment process. The hooks also have three stretch indicators. However if by any chance the hook is overloaded there is no fear of it breaking, it will simply gradually start straightening out, avoiding any load drop or personal injury.
