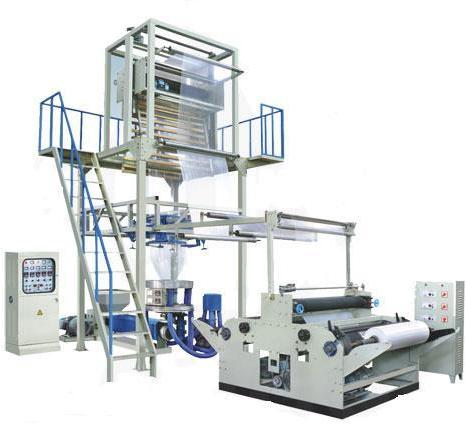

Lifting Machine, Rotating Machine, Head Film Blowing Machine

we are offering lifting machine, rotating machine, head film blowing machine.
he closest service:
1.free installation and ajustment.(for consumers purchase more than $100000 only)
2.one year free after-sales service and mechanical parts lifetime warranty.
3.no charge for changing parts in one year by tnt express.
feature:
it is used to blow high/low pressure polyethylene film widely used for producing composite film, packaging film, packaging bag or film for textile and clothing and other packing materials. the main motor adopts the frequency control of motor speed to improve the speed regulating stability and save the electricity by 30%. both the screw and the charging barrel are made of 38 chrome-molybdenum aluminum through nitrogen treatment; and the traction frame applies the lifting type. no matter what size the film is (big or small), it can achieve the best effect of cooling.
optional components:
1)auto loader 2) embossing roller 3) film surface treater 4) rotary die head 5) air compressor 6) mechanics screen changer 7) auto lifting device.
main technical parameters
model . chsj-55c . chsj-60c . chsj-65c
diameter of screw 55mm 60mm 65mm
l/d ratio of screw 28:1 28:1 28:1
rotation speed of screw 10-100r/min 10-100r/min 10-100r/min
main motor power
extrusion capacity 15kw 50kg/h 18.5kw 65kg/h 18.5-22kw 80kg/h
maximum folding width of film 800mm 1000mm 1200mm
single-sided thickness of film 0.01-0.10mm 0.01-0.10mm 0.01-0.10mm
total power 26kw 30kw 36kw
machine weight 2.3t 2.6t 3t
overall dimension 4200*2000*4900mm 4600*2300*5600mm 4800*2500*5800mm
