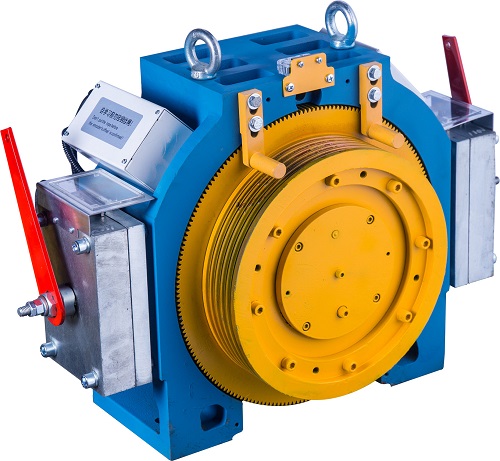

Light and Small Gearless Traction Machine

Quick DetailsType: ElevatorsPlace of Origin: Zhejiang, China (Mainland)Brand Name: XINDAModel Number: MINI 6Drive Type: ACElevator Type: Passenger ElevatorsTraction ratio: 2:1Rated capacity: 320~800kgRated elevator speed: 0.63,1,1.6, 1.75msMax. lifting height:  60mMax. shaft load: 2200kgApplicable converter: 3 phase 400VBrake voltage: DC200V for Brake opening, and DC100V for brake holdingNumber of motor poles: 20 polesTraction sheave diameter: 325mmPackaging & DeliveryDelivery Detail: 60 days after TT in advance20 Poles Gearless Traction Machine For Elevators Lifts , Low Vibration and Low Noise , MINIProduct DescriptionLight and small, the traction machine can be mounted on the top, at the bottom or in the wall, can be used in machine-room and machine-roomless applications, and is provided with brake release and handwinding devices.Mini series gearless traction machines are applicable to both machine room and machine-roomless applications. This type of traction machine has low vibration and low noise level, and can match well with various frequency converters.This type of traction machine can be used in home elevators and villa elevators.Product CharacteristicsTraction ratio: 2:1Rated capacity: 320~800kgRated elevator speed: 0.63,1,1.6,1.75msMax. lifting height: 60mMax. shaft load: 2200kgApplicable converter: 3 phase 400VBrake voltage: DC200V for Brake opening, and DC100V for brake holdingNumber of motor poles: 20 polesTraction sheave diameter: Ø 325mm.
