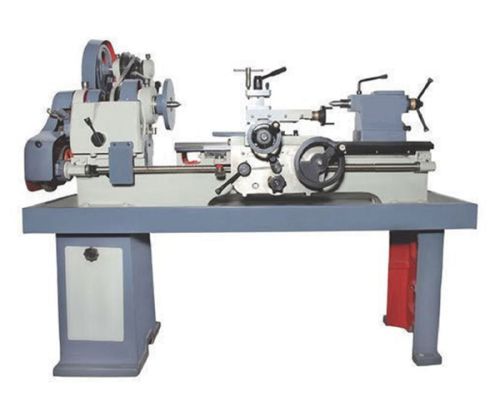

Light Duty Conventional Lathe Machine Manufacturer in Rajkot Gujarat India

Light Duty Conventional Lathe Machine for Industrial Use

Sold By : Tirupati CNC Products

Product Specifications

Driven TypeV-belt Or Geared
Brand NameDhara
Country of Origin415V
Total Carbohydrate1 Year
Usage/ ApplicationIndustrial
Supply TypeManufacturer, Exporter, Supplier, Trader

Preferred Buyer From : All over the world

Product Overview

Standard Eqipment :
1) Chuck Plate 10”
2) Spindle Sleeve
3) Dead Centre
4) Toolpost Key
5) Change Gear Set

Extra Payable Equipment :
1) Face Plate
2) Steady Rest
3) Follow Rest
4) Rear Tool Post Key
5) Electricals
6) Norton Gear Box
7) Coolant Pump Tank
8) Machine Lamp
9) Throgh Chuck
10) Dog Chuck
11) Quick Change Tool Post

Specifications

4’6″ Feet	5’3″ Feet		6’0″ Feet
CAPACITY	INCH	MM	INCH	MM	INCH	MM
HEIGHT OF CENTER	6.5″	165mm	6.5″	165mm	6.5″	165mm
BETWEEN CENTER	27″	675mm	36″	914mm	45″	1143mm
SWING OVER BED	13″	330mm	13″	330mm	13″	330mm
SWING IN GAP	19″	482mm	19″	482mm	19″	482mm
SWING OVER CROSS SLIDE	8″	200mm	8″	200mm	8″	200mm

HEAD STOCK

HEAD STOCK TYPE	BEARING	BEARING	BEARING
SPINDLE DRIVE PULLY	V -BELT	V -BELT	V -BELT
SPINDLE SPEED	8	8	8
RPM RANGE	30TO750RPM	30TO750RPM	30TO750RPM
SPINDLE BORE	11/02/24	11/02/24	11/02/24
SPINDLE CENTER	MT-3	MT-3	MT-3

CARRIAGE

CROSS SLIDE	5″x14″	127 x355mm	5″x14″	127x355mm	5″x14″	127x355mm
CROSS SLIDE TRAVEL	8″	200mm	8″	200mm	8″	200mm
CARRIAGE SIZE	13″x13″	330×330 mm	13″x13″	330×330 mm	13″x13″	330×330 mm
COMPOUND REST TRAVEL	5″	127mm	5″	127mm	5″	127mm
TOOLPOST SIZE	31/2×31/2	89 x89mm	31/2×31/2	89x89mm	31/2×31/2	89x 89mm

THREADS

ENGLISH NUMBER	29	29	29
ENGLISH RANGE	4TO 4TPI	4TO 4TPI	4TO 4TPI
METRIC NUMBER	21	21	21
METRIC RANGE	0.5 TO7mm	0.5 TO7mm	0.5 TO7mm
LEADSCREW TPI	4TPI	4TPI	4TPI

TAIL STOCK

CSPINDLEDIA.	11/2″	38mm	11/2″	38mm	11/2″	38mm
SPINDLE TRAVEL	5″	125mm	5″	125mm	5″	125mm

BED

LENGTH	54″	1371mm	63″	1346mm	72″	1828mm
WIDTH	91/2″	241mm	91/2″	241mm	91/2″	241mm
HEIGHT SIZE	91/2″	241mm	91/2″	241mm	91/2″	241mm

DIMENSION

TOTAL HEIGHT	53″	1346mm	53″	1346mm	1346mm”		1346mm
FLOOR SPACE W	30″	762mm	30″	762 mm	30″		762mm
FLOOR SPACE L	72″	1625mm	72″	1880mm	83″		2108mm
APROX WEIGHT	425Kg.		475Kg.			525Kg.
MAIN MOTOR	1HP1440RPM		1HP1440RPM			1HP1440RPM
