Light Gauge Steel Roll Forming Machine, Brand Name : AOFA

₹ 13.80 Lakh / 35000 35000 Set

MOQ1 Set(s)
Brand NameAOFA
Namelight gauge steel roll forming machine
Control systemPLC
Cuttinghydraulic
Supply TypeManufacturer
Preferred Buyer Location All over the world

We are offering light gauge steel roll forming machine. technical parameters\r\n\r\nmaterial specification\r\n galvanized and pre-painted galvanized steel.\r\n \r\nthickness\r\n 0.3 mm to 0.7mm.\r\n....

Company Information

Member Since 12 Years
Nature of Business Manufacturer
Year of Establishment 2010

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

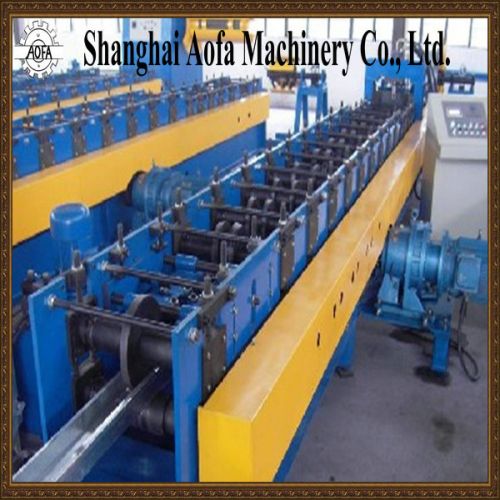

We are offering light gauge steel roll forming machine.
technical parameters\r\rmaterial specification\r galvanized and pre-painted galvanized steel.\r \rthickness\r 0.3 mm to 0.7mm.\r \rmain motor power\r 5.5 kw.\r \rhydraulic station power\r 3 kw.\r \rfeeding width\r 124mm.\r \rcover width\r 60mm.\r \ryield stress\r 235mpa(33ksi) ~ 345mpa (50ksi).\r \rroll forming speed\r 12 m/minute.\r \rcutting tolerance\r ±2mm\r \rmanual uncoiler\r max. Capacity: 5000kgs.\r \rvoltage\r as per customer’s request.\r \rnumbers of stands\r 11 stands/stations/pairs.\r \rroller material \r 5# steel polished and coated with chrome hrc55-60°\r \rshaft diameter\r 70mm\r \rshaft diameter\r high grade no.45 steel after treatment\r \rtype of cutting\r roll-formed and length-set profile cutting.
