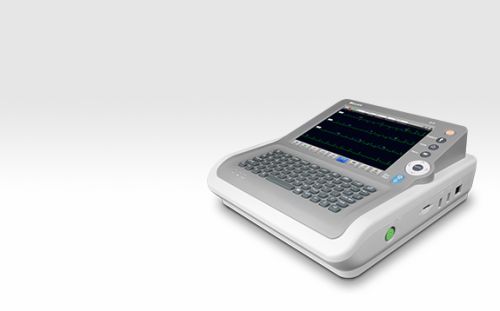

IE 6 Digital 6-Channel ECG, Certificate : CE Certified

Style and Performance :

• This new 6 - channel ECG will give you the power of easy - to - use, advanced technologies,
• multiple ways for data management as well as accurate measurement and interpretation, which can enhance cardiologists diagnostic confidence.

Qualified in Clinical Demands :

• Pacemaker detection function
• Auto-trigger printing when an arrhythmia is detected during the exam
• Extended additional printout to review a significant arrhythmia event after the auto ECG operation
• Up to 300 seconds of frozen waveforms for review, especially helpful and practical in ECG exam for elder patients, fracture patients and naughty children
• Supporting single rhythm and three rhythms analysis from 30 seconds to 300 seconds

Accuracy and Reliability in ECG interpretation

Biocare's CardioPro^TM ECG analysis program has been proven by official CSE database evaluation with high accuracy and reliability in measurement and interpretation.

• The sensitivity and specificity of QRS detection and analysis are up to 99%.
• Complete digital filters and self-adapting filtering guarantee noise elimination without waveform distortion.
• 0.01 Hz for high-pass frequency of ECG signal contributes to undistorted ST segment measurement and analysis.
• Exclusive analysis module for children and pediatrics with 250l-iz low-pass frequency, meets the newest standard of AHA/ACC/HRS 2007.
• Applied the newest Minnesota code
• Fast in defibrillation recovery less than 3 seconds

Other Important Features

• Compact and portable design
• 8-inch high resolution TFT LCD with touch screen
• Full alphanumeric silicon keyboard with shortcut keys, efficient in operation
• New platform application, great improvement in quality and performance
• New menu and interface style, streamlined workflow
• Onscreen operation guide to check the ECG procedure
• Pacemaker detection function
• Real-time waveform freezing available
• Support single rhythm and three rhythms analysis
• Extend printing once arrhythmia is detected
• Various data formats: JPG, XML, DICOM and so on
• Up to 1500 files saved in local memory, enlarged by SD card and USB flash disk
• Support barcode scanner
• ECG management software (optional)
