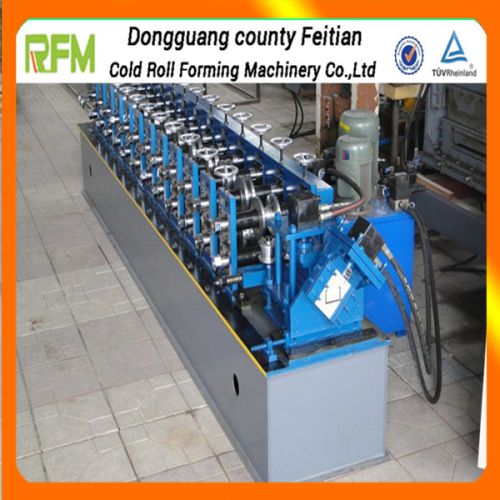

Light Steel Keel Roll Forming Machine, Brand Name : RFM

We are offering light steel keel roll forming machine.
introduction of every part in pictures
working process:
decoiling--feeding--forming--cutting--production
1. Manual decoiler
1.1 inside diameter coil is 350 - 450 mm
1.2 max coil width is 400 mm
1.3 coil load 1.5 tons
2. Forming device
2.1 shaft material: 45# steel, outer diameter 40mm
2.2 roller material: bearing steel
2.3 number of forming station: 10 pairs
2.4 gear transport
2.5 forming speed is 10-25mmin
3. Hydraulic cutting device
3.1 hydraulic station: 1set
3.2 with hydraulic station, motor 3 kw
3.3 cutting press 40 ton
3.4 hydraulic cutter
3.5 blade material: g12 steel with quenched treated 60-62°c
3.6 cutting system: advanced hydraulic drive, automatic cutting after forming, no distorting or
wasting, high level safety factor.
4. Controlling device
4.1 screen: delta
4.2 plc: delta
4.3 automatic length measurement
4.4 automatic quantity measurement
4.5 computer is used to control length and quantity. Machine will automatically cut to length and stop when required quantity is achieved
4.6 length inaccuracy can be amended easily
5.simple output table
payment and terms
payment terms: 30% tt in advance and balance 70% after inspection confirmation before shipment.
