Light Weight Block Machine, Brand Name : shengbei

The advantage of aac block
1 Light weight
The weight of aac block (aerated concrete block)are 500-700kg/m3m regularly, only the equivalent of clay brick 1/4-1/5 and ordinary concrete 1/5
2,high thermal insulating effect
The thermal conductivity of light brick is1/6 of the ordinary concrete and its thermal insulation performance is superior to that of 240mm thick clay brick wall.
3. .Earthquake Resistant
The light brick has light capacity, good overall performance and small inertia force in the earthquake
4. good processing performance
it can bring great convenience and flexibility to construction
5. A certain high temperature resistance
The compressive strength of light brick (aerated concrete block) increases slightly at a temperature of 600 degrees below
6. good sound insulation
The inner structure of light brick is the same as bread which distributes a large number of closed pores uniformly
And other advantage:strong adaptability Cost saving Water Barrier Energy Efficient

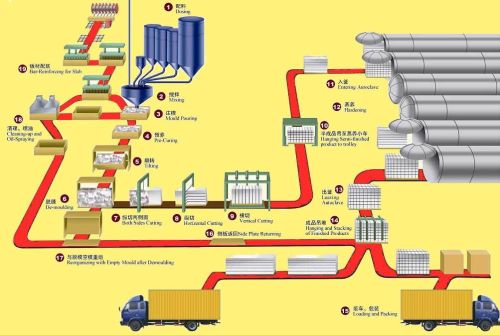

Descriptions of Production Process of aac block
1. Treatment of Raw Materials
2. Ingredient pouring
After the above materials are prepared, electronic scale measures them respectively, mixer mixing them, thereafter, adding the measured aluminum powder, mixing for 45s, and pouring into mold.
3. Cutting
After pouring and foaming, the base quietly stops to certain hardness for cutting. Overturning the base 90 degrees through the overturning cutting machine, firstly cutting horizontally, and then cutting vertically.
4. Steam curing
The cut base reaches certain quantity through travelling marshalling, and then entering to still kettle for 4h curing
Features of Production Process of Aerated autoclaved concreted block machine
1. Fixed-point pouring
2. Mechanical cutting
3. Full automatic centralized control
4. Large space design of factory building
5. Adopt pre-curing before cutting
6. Adopt pre-curing before steam curing
7. Use both vacuumization process and degassing process
Our advantage
With years of specific experience of manufacturing the block, we know how to make the aerated concrete block equipment more efficient, so the equipment is updated continually and new processing technology is adopted and improved in practice, which stands a leading place in the field.
The prominent advantages are shown as following:
1. Production cycle in a short time.
(1). Each link of mixing, mold pouring, tilting and cutting can be done in around 3 minutes.
(2). The process that from mixing to semi-finished products can also be finished in around 3 minutes.
(3). The process of pre-curing can be done only in 70 to 100 minutes;
(4). The Steam Curing Car can enter and leave the autoclave(still kettle) 6 times in 24 hours.
2. Production cost at a low level.
(1). The energy consumption is low.
(2). The shorten time makes high efficiency.
(3). Compared with others in the same condition, cost our products reduces 15% per cubic meter
3. Personalized services provided.
(1). Technical personnel will be sent to help to design and install the factory building.
(2). The operation and maintenance of equipment will be trained for free.
Last but not the least, welcome to visit our machinery and brick manufacturing factory, so that you can experience the optimized the equipment. We are looking forward for your visit and cooperation.
