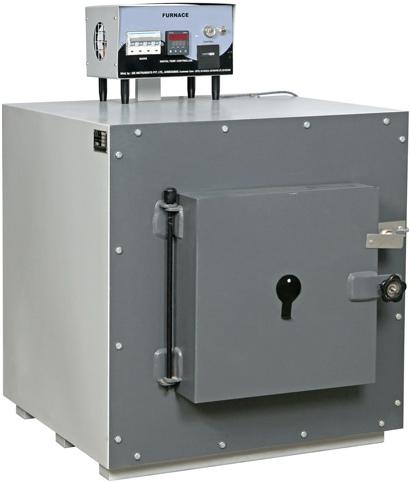

LIGHT WEIGHT MUFFLE FURNACE

Listing ID #4256424

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Introduction In this improved model, ceramic fiber wool insulation (instead of brick insulation) has been provided resulting in weight and size reduction of furnace. The weight and size of the furnace is 1/4 and 30% respectively as compared to brick furnace. The heat up time is less. heat loss is very low-resulting in power saving.

View More Details

Send Enquiry

Product Details




Introduction	In this improved model, ceramic fiber wool insulation (instead of brick insulation) has been provided resulting in weight and size reduction of furnace. The weight and size of the furnace is 1/4 and 30% respectively as compared to brick furnace. The heat up time is less. heat loss is very low-resulting in power saving.

Construction	CRC sheet with stoving enamel
Insulation	Ceramic fiber wool insulation
Max. Temp.	1200°C
Working Temp	1150°C
Temp.control	Dual display microprocessor based Digital temperature indicator cum controller with Cr/A1 Sensor
Heatings	KANTHAL APM wire in coil form wound on the muffle, embedded in high grade refractory Cement.
Std.Fittings	Compensating cable, indicating lamps, Power plug and cord.
Operation	220/230 Volts AC single phase.

Working size (L X W X D)

225 x 100 x 100 mm

250 x 125 x 125 mm

300 x 150 x 150 mm

300 x 200 x 200 mm

450 x 225 x 225 mm

NOTE :

THE HEATING COILS OF THE FURNACE ARE WARRANTED FOR 1000 WORKING HOURS AT MAXIMUM WORKING TEMP. FROM THE DATE OF USAGE.
