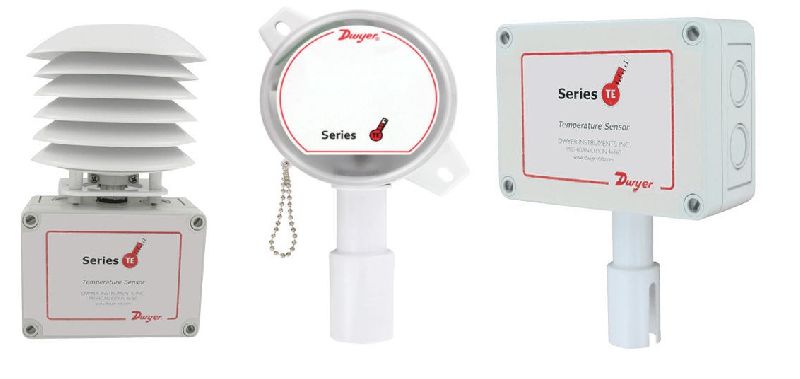

Series TE-OND/TE-RND/TE-OSA Outdoor Temperature Sensors

Protection Against Radiated Heat, Weatherproof Housing

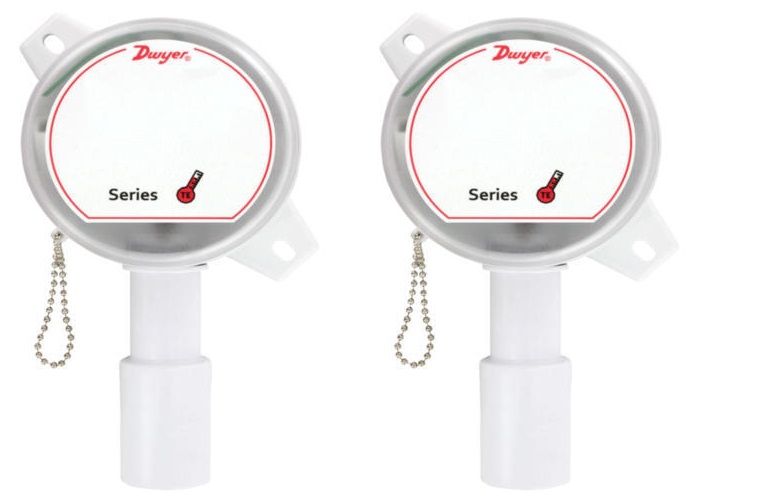

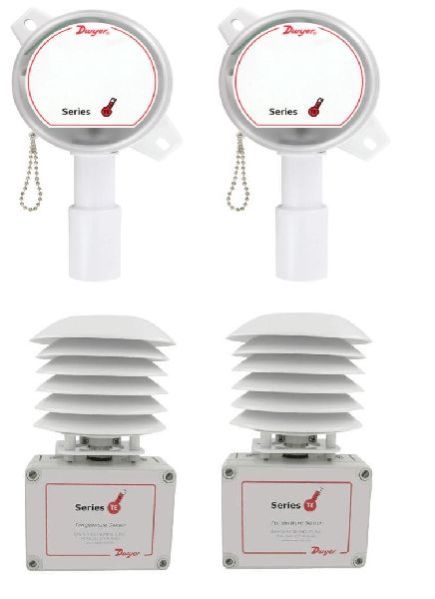

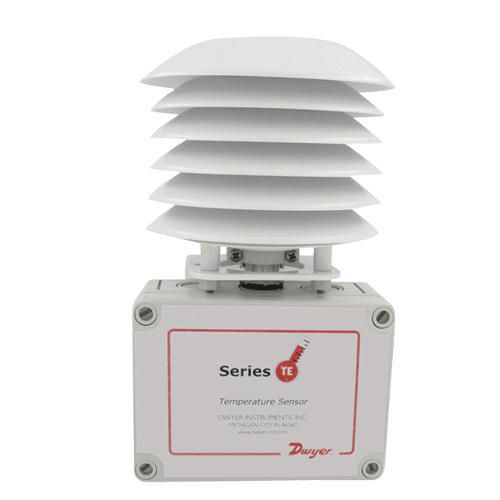

The Series TE-OND/TE-RND/TE-OSA Outdoor Air Temperature Sensors are offered in two different configurations to increase measurement accuracy by reducing radiated heat effects. For applications where the north side of the building is accessible, the TE-OND/TE-OSA can be used to protect against low levels of radiated heat. If the sensor must be mounted in direct sunlight or a more precise measurement is required, our six plate radiation shield mounts over the temperature probe. The TE-RND radiation shield models can be surface or pipe mounted. All models include removeable terminal blocks to simplify wiring.

ModelDescription

• TE-OND-AOutside air temperature sensor, 10K Ω Type III thermistor
• TE-OND-BOutside air temperature sensor, 10K Ω Type II thermistor
• TE-OND-COutside air temperature sensor, 3K Ω thermistor
• TE-OND-DOutside air temperature sensor, Pt100 Ω RTD sensor
• TE-OND-EOutside air temperature sensor, Pt1000 Ω RTD sensor
• TE-OND-FOutside air temperature sensor, 20K Ω thermistor
• TE-OND-QOutside air temperature sensor, 10K Type III thermistor with 11K Ω shunt
• TE-OSA-AOutside air temperature sensor, 10K Ω type III thermistor
• TE-OSA-BOutside air temperature sensor, 10K Ω type II thermistor
• TE-OSA-COutside air temperature sensor, 3K Ω thermistor
• TE-OSA-DOutside air temperature sensor, PT100 Ω RTD
• TE-OSA-EOutside air temperature sensor, PT1000 Ω RTD
• TE-OSA-FOutside air temperature sensor, 20K Ω thermistor
• TE-OSA-QOutside air temperature sensor, 10K Ω type III thermistor with 11K Ω shunt
• TE-RND-AOutside air temperature sensor with radiation sheild, 10K Ω Type III thermistor
• TE-RND-BOutside air temperature sensor with radiation shield, 10K Ω Type II thermistor
• TE-RND-COutside air temperature sensor with radiation shield, 3K Ω thermistor
• TE-RND-DOutside air temperature sensor with radiation shield, Pt100 Ω RTD sensor
• TE-RND-EOutside air temperature sensor with radiation shield, Pt1000 Ω RTD sensor
• TE-RND-FOutside air temperature sensor with radiation shield, 20K Ω thermistor
• TE-RND-QOutside air temperature sensor with radiation shield, 10K Type III thermistor with 11K Ω shunt

Specifications

• Accuracy:Thermistor temperature sensor: ±0.22°C @ 25°C (±0.4°F @ 77°F);
• RTD temperature sensor: DIN class A: ±0.15°C @ 0°C (±0.28°F @ 32°F).
• Temperature Limits:Operating: -40 to 302°F (-40 to 150°C).
• Sensor Curves:See Resistance vs. Temperature Table.
• Housing Material:Polycarbonate.
• Enclosure Rating:TE-OND/TE-RND: NEMA 4X (IP65); TE-OSA: NEMA 3R (IP54).
• Weight:0.65 lb (295 g).
