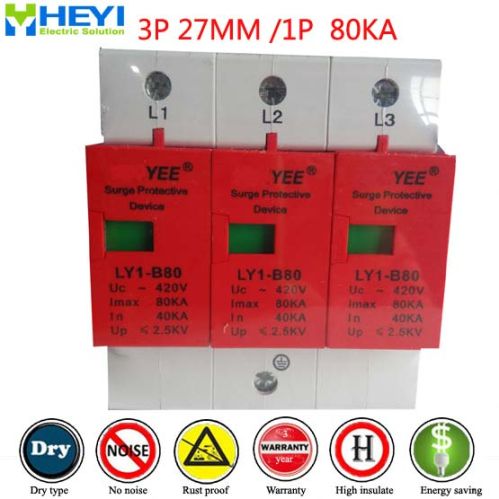

Lightning Arrester Rod Single Phase Surge Protector Surge Arrestors

We offer Lightning Arrester Rod Single phase surge protector surge arrestors.
Lightning arrester for surge arrester device protector SPD 60ka 420V 4 Pole 60A Single Phase din rail type
Electric ratings: 230400V, AC5060Hz, 1-phase;
Application: Protect electric system and on-loading electrical apparatus from thunder and instantaneous over-voltage;
Standard: IECEN 61643-1
Number of poles: 1, 2,3, 4;
Electric ratings: 230400V, AC5060Hz;
Application: Protect electric system and on-loading electrical apparatus from thunder and instantaneous over-voltage;
Electric ratings: Single phase power distribution and control system of AC5060Hz, 230V;
Short circuit current: up to 10kA (820μs);
Application: Protect electric system and on-loading electrical apparatus from lightening and instantaneous over-voltage;
Lightning arrester for surge arrester device protector SPD 60ka 420V 4 Pole 60A Single Phase din rail type Specification
Techinical parameters Model LY1-B
Rated operating voltage Un(V~) 220V 380V 220V 380V 220V 380V
Maximum continuous operating voltage Uc 385V 420V 385V 420V 385V 420V
Voltage protection level up(V~) KV ≤2.8 ≤3.2 ≤2.2 ≤2.5 ≤2.0 ≤2.3
Nominal discharge current In(820μs)KA 60 40 30
Maximum discharge current Imax(820μs)KA 100 80 60
Response times
