Lightning Protection Products

We are offering lightning protection products.
1. product features
 multi. Protection circuits, gas-tube+ tvs technology
 dual protection in common module and different module
 tvs array technology, low capacitance
 multi-strike capability
 provide protection for hd cctv, broadcasting devices
 bnc male to bnc female
 sdi transmission rate: 0 ~ 1.48gbps
2. applications
 catv system
 antenna of television
 video cassette recorders
 fm receivers
 hd cameras and hd dvrmonitors
 hd-sdi video camera
3. technical data

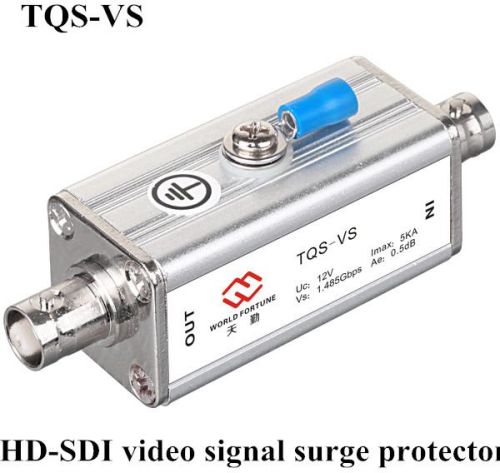

model tqs-vs
nominal operating voltage un 5v
nominal discharge current in (820μs) 3ka
maximum discharge current imax (820μs) 5ka
protection level up (820μs,3ka） ≤20v
response time ta ≤1ns
transmission rate 1.485gbps
insertion loss ≤0.5db
protection route 16
dimension 483*44*90mm
connector type bnc
weight 80g
mounting type series connected before the protected equipments
housing material a3 steel
index of protection ip20
operating environment temperature:-40—+85℃ humidity: ≤95%
warranty five-year warranty, three-year replacement
related items tqs-vs-16, tqs-vs-4, tqs-v-8
