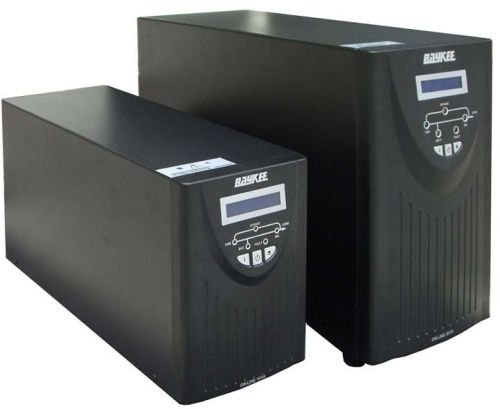

Line- Interactive Sinewave UPS, Brand Name : BAYKEE

We are offering line- interactive sinewave ups.
model no
bk-hd-750va
bk-hd-1200va
bk-hd-2000va
bk-hd-3000va
bk-hd-5000va
rated capacity(va)
750va
1200va
2000va
3000va
5000va
output power(w)
rated capacity×0.8
working mode
line-interactive
phase
single phase l+n+g
rated input
100110115127v;220230240v
input rang
±30%
frequency input
5060hz
frequency range
±10%
stabilizer
intelligent muti-grade relay regulating
output accuracy
±5%
battery type
maintenance free sealed lead acid battery
battery rated(v)
24v
48v
charging mode
constant current then constant voltage,with temperature compensation charge, equalized charging and floating charging automatically convert
floating charge
26v
51v
equalized charge
28v
55v
temperature compensation
3mv°c(mono)
charging power
20% rated capacity
output phase
single l+n+g
rated voltage
same with rated input voltage
inverter output
220vac
inverter voltage stability
±1%(steady state load),±3%(fluctuation of load)
frequency stability
50hz,60hz 5:1
inverter output waveform distortion factor
sine wave,linear load
