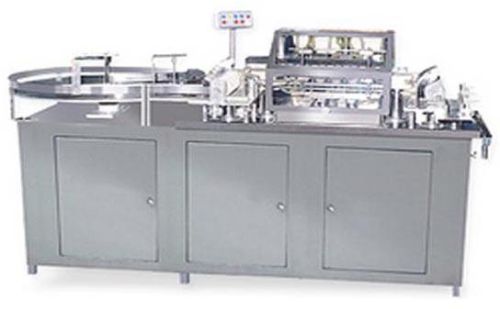

Linear Bottle Washing Machine

we are offering linear bottle washing machine.
description:-
automatic linear bottle washing machine is suitable to wash glass bottles. machine equipped with six washing stations can be interchangeable as per specific customer’s requirements. this linear bottle washer provides 3 water wash & 3 air wash for positive & pressurizing washes of bottles. all contact parts made from stainless steel 316 and non-contact parts made from stainless steel 304 materials. bottle invert into neck down position and nozzles enters into bottle during washing cycle to meet gmp requirements. automatic linear bottle washing machine is ideal and economic choice for online sterile vial filling line. machine is having uses in pharmaceutical, cosmetic, food, chemical & allied industries.
salient features:-
* a complete cgmp model
* all contact parts are made from high quality stainless steel 316l and argon arc welded
* all exposed parts are made from stainless steel 304hard chrome platedbrass for corrosion free long life.
* the unit built on s.s. square pipe frame and totally encompassed with s.s. coverings
* washing section is totally covered with acrylic cabinet.
* “no container - no washing” system.
* “no washing - no water supply” system.
* quick change over with minimum use of tools.
* variable ac frequency drive for speed adjustment.
* low water consumption.
* digital counter for counting production output.
* fixed top nozzles at each washing station ensures external washing of vialsbottles at the same time of internal washing.
* flow of washing medias stop during the indexing of chain saves utilities.
* easily cleanable & inter changing facility.
process operation:-
containers feed from the de-cartooning station are received on an in feed turn table. an in feed worm inverts container to neck down position and feeds them through a specially designed indexing device. the device carries the container forward and stops. nozzles carrier enters into the container and activities the jet of waterair. the airwater flow is deactivated after the washing cycle is over. device indexes the vialsbottles for next wash. a separate pumping station gives the right quantum of water at the desired pressure. washed containers are again inverted to neck upward position to collect in out-feed traydirectly feed to tunnel.
washing cycle:-
1st wash recycled water
2nd wash purified air
3rd wash dm water
4th wash dm water
5th wash purified air
6th wash distilled water (wfi)
