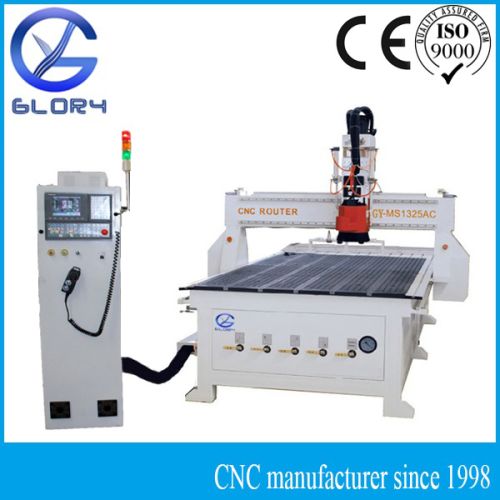

Linear CNC Router

We are offering linear cnc router,
key features:
seamless steel structure of lathe bed
9kw hsd air cooled spindle
static linear auto tool changer with 6-8 positions
four powerful yaskawa ac servo drive motors
re-carving after power failure
well compatibility: type3, castmate, artcam, etc.
Ideal for:
furniture manufacturing
advertisement
shop fitting
woodworking
density board
acrylic
soft metals
composite and much more
processing effect:
milling, cutting, engraving, drilling, relief, etc.
Specification gy-ms1325ac
working area
(x axis) 1300mm
working area
(y axis) 2500mm
clearance
(z axis) 300mm
table size 1440mm*3040mm
precision 0.05mm
spindle 9kw hsd
spindle speed adjustable 0-24,000 rpm
tool change linear tool-changer
drive system
(x & y axes) helical rack & pinion
drive system
(z axis) taiwan ball screw
guide rail taiwan 25m square guide rail
lubrication manual oil-injection system
drive motors japanese yaskawa servo motors
driver yaskawa
inverter fuling
command g code
cutter diameter 3.175-20mm
maximum idling speed 40mmin
maximum engraving speed 30mmin
table top vacuum table with t-slots
controller syntecdsplnc
vacuum pump chinese tongyou 5.5kw
power requirements 3-phase 380v50hz (220v50hz optional)
machine dimensions 1800*3400*2000mm
weight 2100kg
optional:
alignment pop-up pins
gang drill
customized table size
added rotary axis
more or less tool positions
automatic oil-injection system
etc
note:
all the parts of machine can do some changes to meet your requirements.
Such as the motor (stepper motor or servo motor), spindle (air cooled or water cooled, hsd or chinese brand), table of the machine (vacuum table, t-slot table or combination of t-slot & vacuum table) and operating system (dsp, weihong or syntec), etc.
