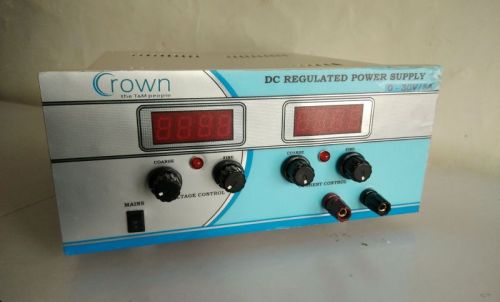

Single Crown 50hz Linear DC Power, For Electronic Goods, Output Voltage : 64

₹ 15,700 / piece

Frequency50hz
Current TypeDC
Temperature CapacityHigh Temperature, Medium Temperature
Output Voltage64
Supply TypeSupplier, Retailer, Distributor, Trader
Preferred Buyer Location All over the world

Company Information

Panvel, Navi Mumbai, Maharashtra

5.0/5

Member Since 9 Years
Nature of Business Supplier
GST No. 27ACZPT5610Q1ZG

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Country of OriginIndia
Brand NameCrown
Current TypeDC
ConditionNew
Power250-500W
ApplicationElectronic Goods, Power Supply
CertificationISO 9001:2008 Certified
FeatureEasy To Install, Proper Working, Sturdy Construction, Superior Finish
Temperature CapacityHigh Temperature, Medium Temperature
Number Of FlowerDc Power Supply
Output Voltage64
Frequency50hz
PhaseSingle
Total Carbohydrate1yr
Cooling SystemAir Cooling

Output Type - Single

Output Voltage - 0-64V

Output Current - 0-5A

Load regulation(CV) - +/- 0.05% +/- 3mV From no load to full load

Load regulation (CC) - +/-0.05% +/- 1mA from no load to full load

Line regulation(CV) - +/- 0.01% +/-3 mV for +/-10% variation input voltage

Line regulation (CC) - +/- 0.01% +/- 1mA for +/-10% variation input voltage

Ripple Less than - 1 mV

Meter - Two digital meters to monitor the output voltage and current

Protection - Against short circuit and over load

DC Regulated Power Supply 0-64V/1A are constant Voltage & Current Constant type supplies, have high regulation for Load & Line Voltage variation. The supply is protected against short circuit & over load. The output current can be controlled to any value from 0 to maximum.
