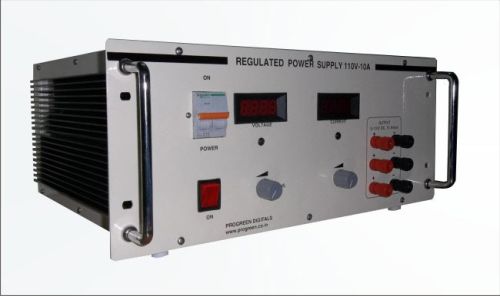

Linear Fixed Power Supply

Voltage Adjustment :Fine control.
Output Voltage :110VDC Fixed.
Output Current :0 to 10 Amps
Supply TypeSupplier, Retailer
Preferred Buyer Location India only

We offer Linear regulated fixed power supply with following specifications: Model No. : PGD-PS-11010A Input Voltage : 230 VAC +-10% 50Hz. Single phase AC. Output Voltage : 110VDC Fixed.....

View More Details

Send Enquiry

Company Information

Pro Green Digitals

Vidyaranyapura, Bangalore, Karnataka

View Number

Member Since 15 Years
Nature of Business Retailer
Year of Establishment 2010

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

We offer Linear regulated fixed power supply with following specifications:
Model No. : PGD-PS-11010A
Input Voltage : 230 VAC +-10% 50Hz. Single phase AC.
Output Voltage : 110VDC Fixed.
Voltage Adjustment : Fine control.
Output Current : 0 to 10 Amps
Current Adjustment : Fine controls.
Output Line regulation : +- 0.1% +-3mV
Output Load regulation : +-0.1% +-3mV
Control scheme : Transistor series pass regulator.
Ripple : 10mV RMS
Display : 2 individual 3 digit DPMs for Voltage and Current.
Indication ( LED ) : Over load, Short circuit, Power on.
Power On : MCB
Protection : Transistor series pass regulator.
Operating temperature : 5 DEG C to +60 DEG C
Output Adjustments : With Knobs.
Dimensions : 200mm(H) X 482mm(L) X 350mm(D)
Other custom make specifications available on request.
