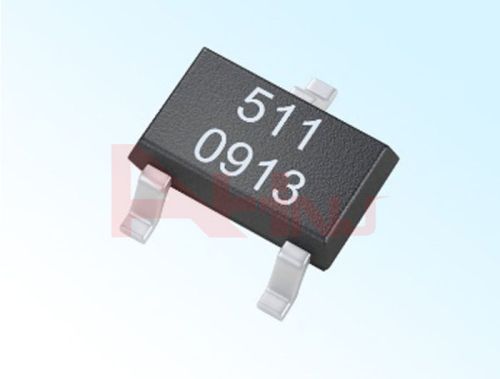

Linear Hall Sensor AH3511

Linear Hall Sensor AH3511
Hall Sensor
Hall Switch
Features
Rated working voltage 4.5 V ~ 6 V,;
Operating temperature range: -40℃ ~ 125℃;
Rail to Rail voltage output, Rated output current : 6 mA;
Variety of package forms and outer packings for your choice;
No mechanical contact, no spark, switch signal stability, no shaking moment, high reliability and safety;
Products meet the EU RoHS instruction 201165 EU and REACH regulations 19072006 EU requirements.
AH3511 is a kind of analog signal output Hall IC, the output voltage changes with the changes of magnetic field. The sensor chip has built-in reverse voltage protection, voltage regulators, temperature compensation circuit, Hall-voltage generator, signal amplifier, and other circuit unit etc. Excellent voltage regulator and temperature compensation circuit ensure the sensor stable operates over a wide voltage range and temperature range, and the reverse voltage protection circuit avoids the sensor to be damaged by reverse voltage.
