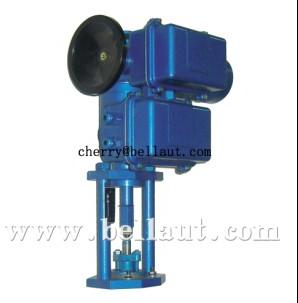

Linear-turn Electric Valve Actuator

We Offer Linear-turn Electric Valve Actuator.
Forty years production experience
Structure is simple
Economical and practical
ISO9001 certification
Summary
The electric actuators we manufactured are the products by using the introduced advanced technology from BERNARD Company of France.
It has various kinds of protection function and control mode. It can be divided into the quarter-turn series, linear-turn series and multi- turn series. There are more than hundred kinds of specifications. Its control main board is continuously upgrading and updating and the new products appear rapidly in order to satisfy the needs of modern industrialization.
The electric actuator has already widely applied in the large and medium-sized project which is the newly built and was highly appraised by users.
At the same time, we also accumulate rich technology and scene experiences in the process of updating and upgrading DKJ or other actuators to the introduced series.
Features of the introduced series
The introduced new generation of intelligent model
Assembled and manufactured in domestic, BELL and SD series introduce the advanced technology from France and the key components are imported from the country of origin. The manufacturing process is strictly in accord with the technique requirements of French company. However, the series mentioned above is produced with higher quality and lower cost.
With the compact structure, light weight, fully function, over 1200 times per hour of the starting times and great logic control circuit, this series is especially applied to the conditions of high-efficient automation and frequent movements.
Cut-off signal protection
The actuator stop at the original, all-on or all-off position which is instructed by users as the signal is interrupted by accident or the input signal is less than 3mA (called the cut-off signal) in order to guarantee the whole system�s safe and stable. It also possesses the output connection point for alarm.
Over-torque of two- way protecting function
The actuator has an over-torque surveying device that can accurately survey the torque of the valve. When the torque exceeds the setting scope, the torque switches inside the actuator and outputs a signal to the controlling circuit for stopping the motor to protect the valve, the driving parts and the motor. After the mechanical over-torque fault is relieved, shutting down the power supply or input an instantaneously reversed signal, the actuator will come back to turn normally.
Auto switch function
The actuator can implement three kinds of switch function � �Distant- automatic / distant -manual /local�. It can also operate electrically and manually on the spot.
The pros and cons of switch function
The control panel program has the pros and cons of switch function that satisfied different situations on-the-spot.
Dynamic braking
The control panel program of modulating model electric actuator has the dynamic braking function that can prevent motor�s inertia movement and ensure the stability and reliability of the controlling system.
Servo-motor with double protection and high-efficiency
All the motor has the thermal and open-phase protecting function. When there is an unexpected failure, it will shut off the power supply effectively so as to protect the motor. It serves as a good servo characteristic and it will not overheat after frequent movements.
Stronger anti-interference function
