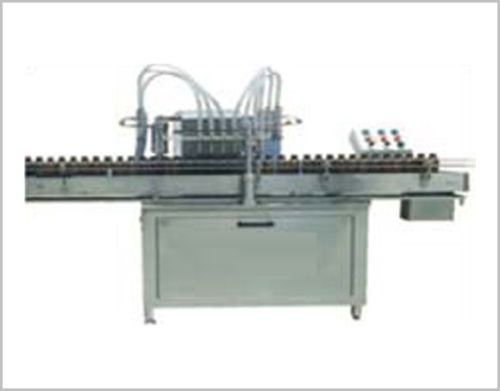

Linear Volumetric Filling Machine

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Salient Features cGMP model based on advanced technology Single Operator for two operations No contamination as immediate sealing of filled bottles Centralized volume adjustment system - No down time in volume settings No bottle- No Fill system Additional sensor provided on Cap Chute to avoid damage of caps during rotation Sensor for No cap in chute- Machine stops Separate Variable Drive to control speed of conveyor Electronic liquid level controller and pneumatically controlled control valve PLC Control Acrylic cabinet to avoid dust particle during operation

View More Details

Send Enquiry

Company Information

Vitro Pharma

Santacruz, Mumbai, Maharashtra

View Number

Member Since 14 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Technical Specification
Output/Hour	6 x 6	8 x 8	12 x 8	16 x 8
	5000	7000	9000	14000
Capacity	30ml to 250ml (With the help of change parts)
Accuracy	± 0.05 to 1 % due to piston dozing principle
Electrical Rating	440V, 3 Phase, 50 Hz, 4 Wire system
Power require	4 H.P. 3 Phase
Machine Dimensions	2500 mm (L) x 1250 mm (W) x 2150 m (H)
Bottle dia.	Min. 25 to Max. 80mm
Bottle Height	Min 38mm to Max. 200mm
Cap	22mm, 25mm & 28mm
Bottle type	Glass & Pet
Bottle Shape	Round & Flat
