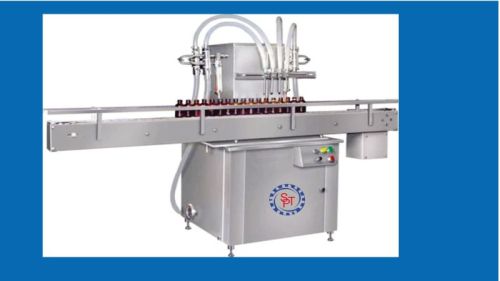

Liquid filling machine, Capacity : 60 BPM

Our Liquid Filling Machine functions on volumetric principle with plunging nozzles. This unit is appropriate for filling different fluids into the bottles or containers. The Unit comprised of SS body, slat conveyor and reversing nozzles alongside auto-cantering instruments. In addition, the empty containers move on SS conveyor and stop via settable dual pneumatically or mechanically run stopper framework. This system is installed underneath the filling nozzles and in interim, the bottle or container is precisely filled by nozzles. The holder can be effectively and definitely co-ordinate underneath the nozzles by the help of dual pneumatically run framework and responding nozzles that prevent spillage. The fluid portion in our Liquid Filling Machine can be effectively set by block alongside a hexagonal bolt equipped underneath syringes.

Main Features :-  All Contact Parts SS 316 / 316L as per cGMP Standard.+ 1% filling exactness on a single portion.Exquisite and simple control panel for complete control over activities.Self - greasing profile for 5.5 brace chain gives low abrasion wear surface, smooth and silent conveying.Trickle plate under the conveyor system.Mechanical or pneumatic container halting arrangement.Security monitor for pneumatic cylinders, motor and conveyor gearbox.Nitrogen flushing framework is offered as demanded by the client. Optional Features :- Programmed chain washing framework for transport line.Inbuilt pre-review and acrylic cabinet.Nitrogen flushing and float tank without or with blender.
