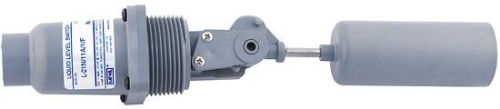

Liquid Level Switches

Liquid level switches of cable end float switches are designed for controlling levels in large tanks,
cisterns or reservoirs and can be directly installed on submersible pumps.
The casing is manufactured in blow moulded Polyethylene (PEHD), with 5m PVC cable with
protective earth conductor as standard. The switching element is a microswitch, with UL, VDE and CENELEC approvals, activated by a moving stainless steel ball and having an electrical life of 200,000 operations. Non hygroscopic closed cell expanded polyurethane is injected around the switch housing within the outer casing, hermetically sealing the unit.
These switches are capable of working down to 100 metres depth in water.
