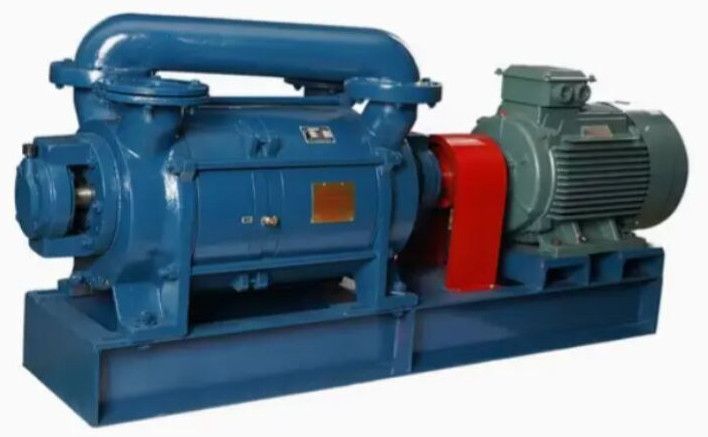

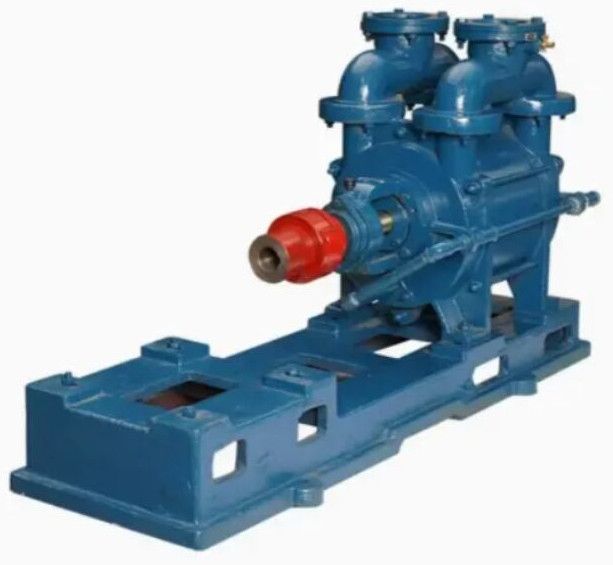

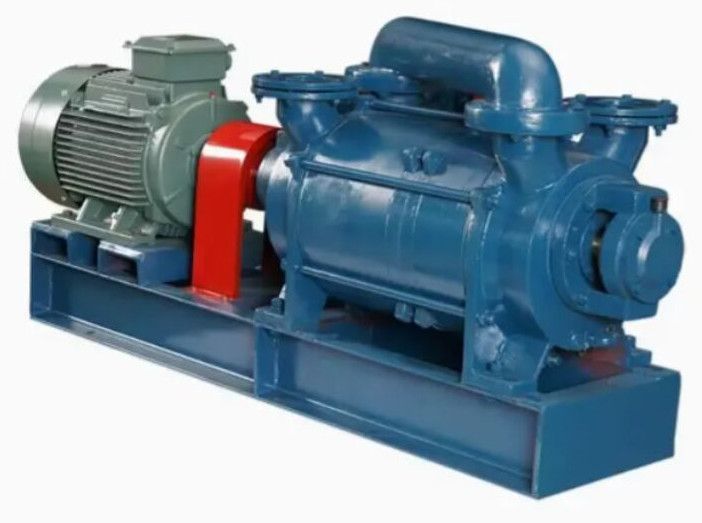

Electric Cast Iron 380V Liquid Ring Vacuum Pumps

₹ 2.90 Lakh / Piece

Frequency Range380V
MaterialCast Iron
Driven TypeElectric
Oil Tank CapacityGreentech
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Product Details

Brand NameGreentech
MaterialCast Iron
Driven TypeElectric
ShapeRectangular
Power55 kw
Operating TypeAutomatic
Usagemachinery, petrochemical, pharmaceutical, food, sugar, and electronic fields
CertificationISO 9001:2008 Certified
SpecialitiesHigh Performance
Dimension (LxWxH)110.50cm * 40.00cm * 40.50cm
Oil Tank CapacityGreentech
TypeLiquid Ring Vacuum Pump
Thickness5.5kw
Warranty1 Year
Frequency Range380V
Transport PackageWooden Box
Vacuum DegreeLow Vacuum
Model NO.2SK-30
Flow of Supiying Water(M³/H)Ate70~90

Greentech International (Zhangqiu) Co., Ltd is the professional liquid ring vacuum pump supplier.

The 2SK water ring vacuum pump is widely used in industries such as chemical machinery, light industry, medicine, and food to extract air or other gases that are insoluble in water, do not contain solid particles, and are non corrosive, in order to form a certain degree of vacuum in closed systems. Commonly used in processes such as vacuum evaporation, vacuum concentration, vacuum drying, vacuum filtration, and vacuum feeding. This series of pumps has the characteristics of compact structure, reliable use, easy installation and disassembly, and simple maintenance.

A liquid ring vacuum pump is a rotating positive-displacement pump. They're ordinarily made use of a vacuum pump but can also be used as a fuel compressor. The function of a liquid ring pump is equivalent to a rotary vane pump, with the distinction becoming that the vanes are an integral part of the rotor and churn a rotating ring of liquid to kind the compression-chamber seal. They may be an inherently low-friction design, with the rotor remaining the sole moving aspect. Sliding friction is restricted towards the shaft seals. An induction motor typically powers liquid ring pumps.

The liquid ring vacuum pump compresses gas by rotating a cylindrical casing, which is eccentric. Liquid (typically water) is fed into the pump and, by centrifugal acceleration, kinds a moving cylindrical ring against the inside of the case. This liquid ring creates a series of seals inside the space concerning the impeller vanes, a type of compression chamber. The eccentricity concerning the impeller's axis of rotation and the casing geometric axis results in a cyclic variation in the volume enclosed through the vanes plus the ring.

Applications
SK series water/liquid ring vacuum pump and compressor are widely used in machinery, petrochemical, pharmaceutical, food, sugar, and electronic fields. In the working process, the gas compression process is constant temperature, so the compression and suction of explosive gas are not prone to explosion risk, so the use of a broader range.

Features

With compact structure and easy to repair.
It has a wide range of applications. It can pump all kinds of gases containing water vapor, flammable, explosive, a small amount
of dust and a small amount of liquid.
The main working medium is water, and the maintenance cost is low.
Able to work in harsh environment.
