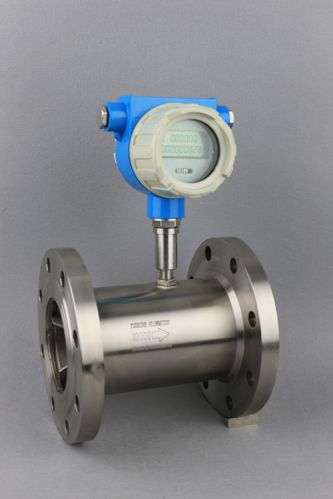

We are offering liquid turbine flow meter. Item specification:
measuring medium:water, diesel, methanol, liquor
material:304 stainless steel, aluminum alloy
medium temperature:-20 to +120°c
environment condition:temperature-10 to +55°c relative humidity5%to90%
atmospheric pressure: 86kpa to 106kpa
accuracy:ã�â±1.5 ; ã�â±1.0
ratio of measurement range:1: 10; 1:15; 1: 20
output signal:sensor: frequency impulse signal, low levelã¢ï¿½â¤ 0.8v, high levelã¢ï¿½â¥ 8v
transmitter: two-wire system, 4~20madc
power supply:sensor: +12vdc, +24vdc ( optional) transmitter: +24vdc
local display: +24vdc or 3.6v lithium battery ( field data show the battery can be continuous used for about 3 to 4 years)
signal transmission cable:stvpv3*0.3( three-wire system), 2*0.3(two-wire system)
transmission distance:ã¢ï¿½â¤1000m
explosion-proof type:exd ii bt6
protection level:ip65
