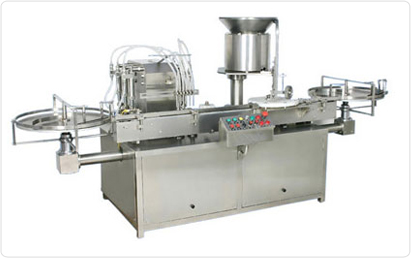

Liquid Vial Filling With Rubber Stoppering Machine

SALIENT FEATURES

• Suitable for the filling Volume of 2ml to 100ml.
• Piston pump / Peristaltic pump filling.
• ± 0.5% Filling Accuracy.
• All Contact Parts Made from S.S 316L & framework by S.S. 304.
• A.C. Variable Drive for speed adjustment.
• Digital Vial Counter for counting production output.
• In-feed & Out-feed Turn Table 24” attached with machine.
• On-line Mechanism.
• No Vial No Filling System.
• No Vial Machine Stop System.
• Machine is equipped with PLC system & printing facility with passwords. (Optional)

40 to 60 Containers/Min (Two Head)
60 to 100 Containers/Min (Four Head)
80 to 150 Containers/Min. (Six Head)
80 to 200 Containers/Min (Eight Head)

2 ml to 100 ml

± 0.5% to the filling volume

Programmable Logic Control (System) with MMI
Aluminum Profile Cabinet covering full machine

1.5 H.P., 3 Phase, 4 Wire System, 50 Hz.

3000mm(L)x 945mm (W) x 1680mm (H) (Eight Head)
1700mm (L) x 750mm (W) x 1680mm (H) (Two Head)
Net Weight: 650 Kgs. Gross Weight: 850 Kgs
2000mm (L) x 850mm (W) x 1680mm (H) (Four & Six Head)
