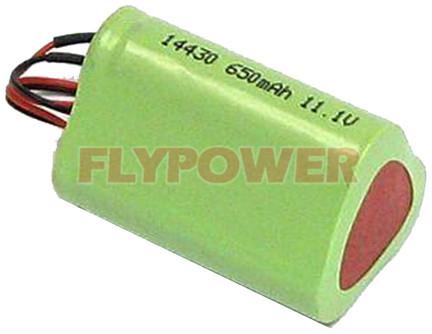

Lithium Ion Battery Pack 30mm *28mm* 48mm, Brand Name : FlyPower

1. Model: 11.1V 650mAh 14430 Lithium ion Battery pack (3S of FLC-14430-650).
2. UN, RoHS, CE approved Li-ion Battery pack.
3. Li-ionBattery pack OEM orders are welcomed.
4. Li-on Battery pack is widely used to Notebook, Power Bank, Information Devices, Power tools, Medical Device, Lighting, LED, Portable device, etc.
5. Battery packs are available.
6. Bulk pack, blister card are available.
7. Individual cells can be assembled in parallel or series into stacks as required by customers.
8. No memory effect, High voltage, high energy density, long cycle life.
9. Eco-friendly.
Cell: Li-ion
Model: 3S of FLC-14430-650
Nominal Voltage: 11.1V
Nominal Capacity: 650mAh
Minimal Capacity: 600mAh
Charging Method: CCCV(Constant CurrentConstant Voltage)
Charge Current: Standard charge : 0.2C(130mA)
Rapid charge : 0.5C(325mA)
Charging Time: Standard charge : 8.0 hours (Ref.)
Rapid charge : 4.5 hours (Ref.)
Continuous Discharge Current: 1.0C (650mA)
Cut-off Discharge Voltage: 9V±0.1V
Overcharge Voltage 4.28±0.025V per cell
Over Discharge Cut Off Voltage 2.4±0.05V per cell
Short Circuit Protection Recover after removing the short circuit load or recharge
Dimensions(T*W*L): 30mm *28mm* 48mm
Weight: Approx. 55g
Operating Temperature: Charge : 0 ~ 45 ºC
Discharge: -10 ~ 60 ºC
Storage Temperature: at -5 ~ 35 ºC Recommend(25±5 ºC)
Note Storage capacity should be 40%~50% full charge capacity.
Applications wireless monitoring devices, medical devices, instrumentation, LED lighting, traffic signs, portable small appliances, electric tools, toys and more
