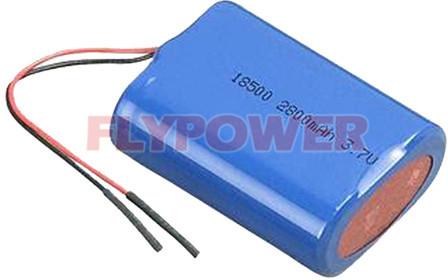

Lithium Ion Battery Pack 18.2mm *37mm* 52.2mm

1. Model: 3.7v 2800mah 18500 lithium ion battery pack (1s2p of flc-18500-1400).
2. Un, rohs, ce approved li-ion battery pack.
3. Li-ionbattery pack oem orders are welcomed.
4. Li-on battery pack is widely used to notebook, power bank, information devices, power tools, medical device, lighting, led, portable device, etc.
5. Battery packs are available.
6. Bulk pack, blister card are available.
7. Individual cells can be assembled in parallel or series into stacks as required by customers.
8. No memory effect, high voltage, high energy density, long cycle life.
9. Eco-friendly.
Cell: li-ion
model: 1s2p of flc-18500-1400
nominal voltage: 3.7v
nominal capacity: 2800mah
minimal capacity: 2700mah
charging method: cccv(constant currentconstant voltage)
charge current: standard charge : 0.2c(560ma)
rapid charge : 0.5c(1400ma)
charging time: standard charge : 8.0 hours (ref.)
rapid charge : 4.5 hours (ref.)
continuous discharge current: 1.0c (2800ma)
cut-off discharge voltage: 3vâ±0.05v
overcharge voltage 4.28â±0.025v per cell
over discharge cut off voltage 2.4â±0.05v per cell
short circuit protection recover after removing the short circuit load or recharge
dimensions(t*w*h): 18.2mm *37mm* 52.2mm
weight: approx. 70g
operating temperature: charge : 0 ~ 45 âºc
discharge: -10 ~ 60 âºc
storage temperature: at -5 ~ 35 âºc recommend(25â±5 âºc)
note storage capacity should be 40%~50% full charge capacity.
