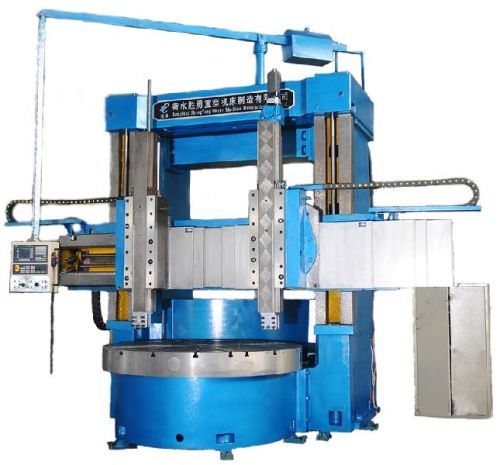

Live Tooling Remarkable CNC VTL Machine

Vertical lathe can be divided into CNC VTL machine and Manual VTL machine. Vertical lathe can make rough and accurate turning of inner& outer cylinder surface, cone surface, grooving and flatting . CNC VTL machine is different than manual VTL machine. CNC VTL lathe machine can process rotating surface and do threading function.
Remarkable CNC VTL machine with live tooling has the following features:
1 High rigidity gantry frame structure, large cross-section column and crossbeam, box-shaped structure, optimization reinforcement, all large workpieces are analyzed by finite element to ensure rigidity under stress condition.
2 Main parts include beds, base, worktable, beam, vertical sliding rest, side tool box, feed box, main drive gearbox etc.
3 Main drive is provided by DC motor (two-step speed-change) or AC motor (16-step speed-change) to engage in table speed-change.

Advantage of CNC Vtl vertical lathe machine
1 Hydrostatic guide way
2 Centralized oil supplying
3 Scraped by hand
4 High precision
5 Little noise
Technical specification of CNC Vertical lathe VTL machines C5225
1 Maximum turning diameter 2500mm
2 Maximum height of workpiece 16002000220025003000 mm
3 Maximum weight of workpiece 1020 t
4 Table diameter 2250 mm
5 Speed change of table 2~63 rmin
6 Maximum torque of table 63 KNmin
7 Vertical travel of tool post 10001250 mm
