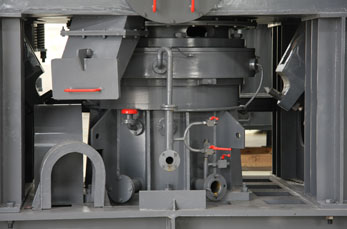

    LM Vertical Grinding Mills

    LM Vertical Grinding Mills

    Get Latest Price
    • Supply TypeManufacturer, Exporter, Supplier, Retailer
    • Preferred Buyer Location All over the world

    Features   Small occupation area Low investment cost Low operation cost and long service life High grinding efficiency Excellent drying function Good final products quality Easy to....
    View More Details
    Send Enquiry

    Company Information

    India International Company
    location Goregaon, Mumbai, Maharashtra
    View Number
    • calendar Member Since 11 Years
    • building Nature of Business Retailer

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details

    Product Details no_img_icon

    Features



    • Small occupation area Low investment cost
    • Low operation cost and long service life
    • High grinding efficiency
    • Excellent drying function
    • Good final products quality
    • Easy to maintain
    • Environmentally friendly
    • High classifying capacity
    • Description



      According to customers’ requirements, TQMC success in absorbing foreign experience and world-advanced technology, and in producing our vertical products, with self-owned intellectual property right. Now it has wide application in metallurgy, construction, chemical and mining industries, being the preferred equipments in grinding industry.

    • Application



      LM series vertical grinding mills are widely used in grinding non-flammable and non-explosive materials under 9.3(the Moh's hardness), such as grinding quartz, feldspar, calcite, talcum, barite, fluorite, iron ore, copper ore quartz, slag, cement clinker, zircon sand, fly ash and carborundum, coal, etc.


    ModelLM80KLM110KLM130KLM150KLM170KLM190KLM220KLM240KLM280KLM340KLM370K
    Wheel diameter(mm)8001100130015001700190022002400280034003700
    Output (th)4-105-1510~2813~3818~4823~6836~10540-13050~17080-240120-300
    Finish finenessμm170-45170-45170-45170-45170-45170-45170-45170-45170-45170-45170-45
    Mesh80-32580-32580-32580-32580-32580-32580-32580-32580-32580-32580-325
    End product moisture (%)≤1%≤1%≤1%≤1%≤1%≤1%≤1%≤1%≤1%≤1%≤1%
    Grinding material particle size D80 (mm)<10<10<10<10<10<10<10<10<10<10<10
    Grinding material max feed size(mm)<20<25<38<40<42<45<50<50<50<70<70
    Moisture of grinding material not to dry (%)<4%<4%<4%<4%<4%<4%<4%<4%<4%<4%<4%
    Moisture of grinding material need to dry (%)4~15%4~15%4~15%4~15%4~15%4~15%4~15%4~15%4~15%4~15%4~15%
    Into mill air temperature (℃)<350<350<350<350<350<350<350<350<350<350<350
    Out of the mill air temperature (℃))70~9570~9570~9570~9570~9570~9570~9570~9570~9570~9570~95
    Main motor power (kw)551102002804005008001000125018002500

    Vertical Coal Mill Series

    ModelLM80MLM110MLM130MLM150MLM170MLM190MLM220MLM240MLM280MLM340M
    Wheel diameter(mm)800110013001500170019002200240028003400
    Output (th)3-57-1010-1716-2220-3026-4035-4550-7070-90100-140
    Coal powder fineness (R0.08)5~20%5~20%5~20%5~20%5~20%5~20%5~20%5~20%5~20%5~20%
    Coal powder moisture (%)<1%<1%<1%<1%<1%<1%<1%<1%<1%<1%
    Grinding material particle size D80 (mm)<10<10<10<10<10<10<10<10<10<10
    Grinding material max feed size(mm)2025<38<40<42<45<50<50<50<50
    Material moisture of into mill (%)<15%<15%<15%<15%<15%<15%<15%<15%<15%<15%
    Into mill air temperature (℃)<350<350<350<350<350<350<350<350<350<350
    Out of the mill air temperature (℃)75~9575~9575~9575~9575~9570~9575~9575~9575~9570~95
    Raw coal hardgrove grindability index (HGI)>55>55>55>55>55>55>55>55>55>55
    Main motor power (kw)45901852503154005006309001400

    Vertical Slag Mill Series

    ModelLM130NLM150NLM170NLM190NLM220NLM240NLM280NLM340NLM370N
    Wheel diameter(mm)130015001700190022002400280034003700
    Output (th)5-147-209-2712-3018-5525-6040-9060-12070-160
    Finish finenessμm170~45170~45170~45170~45170~45170~45170~45170~45170~45
    Mesh80~32580~32580~32580~32580~32580~32580~32580~32580~325
    Slag fineness (㎡/kg)420420420420420420420420420
    End product moisture (%)≤1%≤1%≤1%≤1%≤1%≤1%≤1%≤1%≤1%
    Grinding material particle size D80 (mm)<10<10<10<10<10<10<10<10<10
    Grinding material max feed size(mm)<38<40<42<45<50<50<50<70<70
    Moisture of grinding material not to dry (%)<4%<4%<4%<4%<4%<4%<4%<4%<4%
    Moisture of grinding material need to dry (%)4~15%4~15%4~15%4~15%4~15%4~15%4~15%4~15%4~15%
    Into mill air temperature (℃)<350<350<350<350<350<350<350<350<350
    Out of the mill air temperature (℃)70~9570~9570~9570~9570~9570~9570~9570~9570~95
    Main motor power (kw)20028040050090011201800250031
