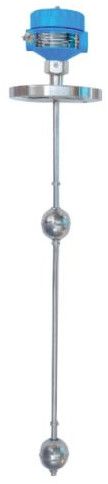

LMS01 Magnetic Float Level Switch

Features

• Simple, low-cost, and reliable operation

• Trouble-free performance with conductive / non-conductive liquids and slurries

• Switch output with potential-free relay contact

• Electronics protection class: Weatherproof IP67, Flameproof (CMRI IIA/IIB Certified)

Electronet series LMS-01 are magnetic float-operated level switches designed for reliable level monitoring.
The sensing assembly consists of a float and a non-magnetic guide tube that ensures undisturbed magnetic flux.

Inside the float, a magnetic system moves with the liquid level along the guide tube.
The guide tube contains hermetically sealed, glass-encapsulated reed switches. As the float moves, the magnet actuates these reed switches, providing switching output at the desired preset level.

• 100 mm to 2000 mm

• ID: 21 mm

• OD: 25 mm

• ±2% F.S.

• Up to 100°C max

• Up to 10 kg/cm² max

1. SS316

2. PTFE

3. Hastelloy C

4. PP

• 1 No. potential-free relay contact

• Contact form: 1 C/O (SPDT), 1 Amp

• 24 V DC (±10%)

• Relay – Potential Free Contact (1 NO + 1 NC)

• < 6 VA

• < 1000 ms

• ±0.01% per °C

• Weatherproof IP67

• Flameproof CMRI IIA/IIB Certified

• 1¼" BSP (M) Threaded

• 2" BSP (M) Threaded

• 2" SS316 Flanged

• Top of the tank

• Temperature: 0 to 75°C

• Humidity: 5% to 95% non-condensing at 25°C
