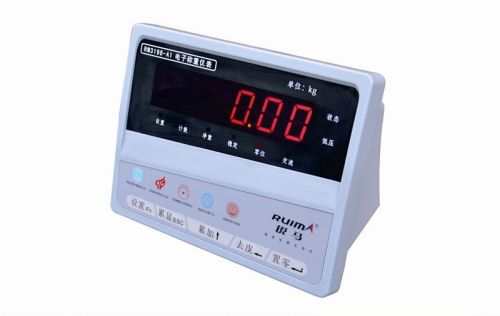

Load Cell Indicator, Brand Name : RUIMA

₹ 1,810 / Piece

MOQ5 Piece(s)
Brand NameRUIMA
High precision A/D conversion with readability 1/30000Alarm for low battery and auto power off at low battery
Optional backlift modeOptional dynamic data grasp mode
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Product Details

Weighing Indicator RM3198-A1 adopts fast speed, high precision AD conversion technology and special anti-vibration software technology, widely applied in electronic platform scale, electronic floor scale, mechanic-electronic conversion scale and so on alike static weighing system equipped with 1~4 load cell.
Size: (L)259x(W)175x(H)150 mm
Standard Function
1. High precision AD conversion with readability 130000.
2. With counting function (unit weight data save protection in case of power off)
3. Alarm for low battery and auto power off at low battery
4. Optional backlift mode
5. Accumulation function & Accumulatin result display
6. Optional dynamic data grasp mode
7. RS232 for connection with large screen & pc.
Technical Parameter:
1. Model: RM3198-A1
2. Accuracy: Class III,n=3000
3. Sample Rate: 10timessecond
4. Load Cell Sensitivity: 1.5~3.0 mVV
5. Division: 1 2 5 1020 50 for option
6. Display: 6 bits LED, 8status indication signals
7. Power: DC 6V4AHLead-acid storage battery without maintenance
8. Temperature : 0~40 °C
9. Storage Temperature : -25~40°C
10. Humidity : ≤85% RH
