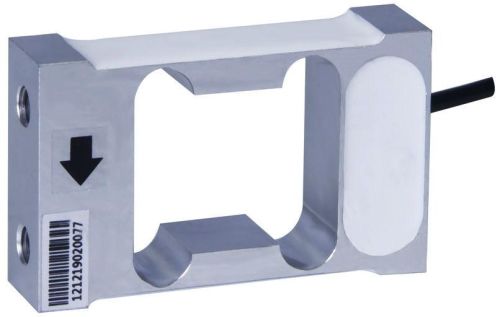

Contact SupplierWe are offering load cell.
Features
material:aluminum alloy
mainly used for price computing scales,counting scales,packing machinerys etc.
Max.platform size:200*200mm
specifications
capacity :4kg~30kg
outline size:50*20*80
rated output:2.0mvv±5%
zero balance:±2%.r.o.
non-linearity:±0.015%r.o.
hysteresis,repeatability:±0.01%r.o.
creep(30 minute):±0.02%r.o.
temperature effect on output:±0.02%r.o.10℃
temperature effect on zero :±0.02%r.o.10℃
input resistance:405±10ω
output resistance:350±3ω
insulation resistance:≥5000mω
temperature compensated:-10to+40℃
operating temperature range:-20to+60℃
excitation,recommended:(5~12)vdc
excitation,maximum:18vdc
safe overload:150%.r.c
cable,and length :10cm(φ4mm).
